Woodworking Four Axis Planer Series Four Sides Planer Machinery

Product Description

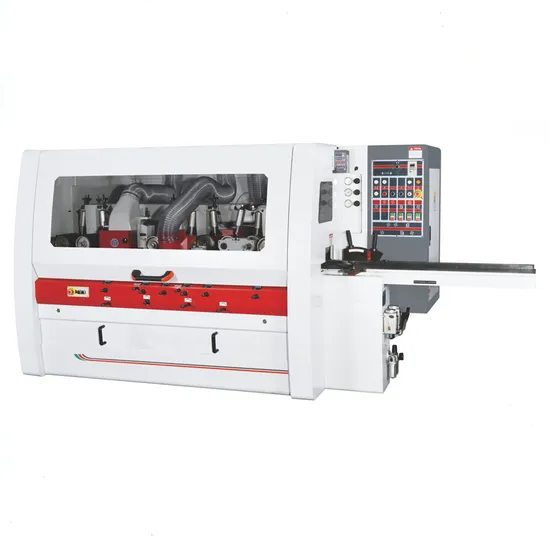

We supply high quality Four-side Planer HJD-M416A Product Show
1.Product show
Product Description
2.Product Description

Model		HJD-M416A	HJD-M421A
Machine parameter	Working width	25-160mm	25-210mm
	Working thickness	8-100mm	8-100mm
	Working length	>250mm >300mm	>250mm >300mm
	Work table size	1250mm	1250mm
	Feeding speed	10-45m/min	10-45m/min
	Main spindle diameter	Φ40mm	Φ40mm
	Rotary speed of main spindle	6000r/min	6000r/min
	Air pressure	0.6MPa	0.6MPa
Motor power	Lower spindle	4kw	5.5kw
	Upper spindle	5.5kw	7.5kw
	Right vertical spindle	4kw	5.5kw
	Left vertical spindle	4kw	5.5kw
	Beam lifting motor	1.1kw	1.1kw
	Feeding motor	4kw	4kw
Cutter diameter	Lower spindle	Φ125 -140mm	Φ125 -140mm
	Right vertical spindle	Φ125-165mm	Φ125-165mm
	Left vertical spindle	Φ125-165mm	Φ125-165mm
	Upper spindle	Φ125-165mm	Φ125-165mm
Others	Feeding roller diameter	Φ140mm	Φ140mm
	Dust pipe diameter	Φ140mm*4	Φ140mm*4
	Dimension	4100*1600*1750mm	4100*1600*1750mm
	Weight	2500kg	3000kg

Installation Instructions
3. Standard Configuration
.This adopts frequency conversion material feeding, material feeding speed ranges from 10 to 45 m/min.
·Each main shaft is driven by independent electric motorcutting force is powerful:
·Main shaft is adjusted to focus on the frontoperation is convenient;
·Hard chrome plating work table is durable;
·Equips with auxiliaryunit alarming lack of material, it effectivelyimproves smooth feed-in while lack of material;
·Multi-group drive rollers improve feeding efficiency;
·Adopts central charging system, features convenience and promptness;
·International brands electrical parts are applied for good stability;
·On the horizontal axis with the front support means to improve the rigidity of the spindle;
·Spare parts are thick and solid to maintain high precision, high stability and high reliability;
·Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickne;
·Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and
protect operators; Detailed Photos
4.Machine details
