Tyb Series Coalescer and Separator Filter Machine

Product Description

Series TYB coalescence-separation light fuel oil purifier
Applications:
TYB adopts coalescence separation filter which integrates high precision filtration and high efficient demulsification and dehydration into one, and can remove large amount of water without heating. It has the fastest dehydrating speed in domestic. This machine can quickly separate water from oil though the water content reach 50%. The oil cleanness can reach NAS six grade. This machine is used conveniently with go-cart type design. It's specially suitable for purifying high water content light oil, jet fuel, gasoline, kerosene, diesel, light and low viscosity lubricating oil .
Features:
1. Using coalescing separation technology to demulsificate, coalesce and separate the free water and the emulsified water.
2. It adopts special oil water separator without heating requirement, and its dewatering efficiency is above 20 times of other kinds of purifier.
3. As no heating is needed, energy consumption and operating cost is reduced.
4. This machine is light and small size.
5. Low operation cost, 20%-40% lower than vacuum oil purifier, centrifuge and plate frame pressure filter machine.
Parameter:

Item		Unit	TYB -10	TYB -20	TYB -30	TYB -50	TYB -80	TYB -100
Flow rate		L/min	10	20	30	50	80	100
Working pressure		Mpa	≤0.4
Power supply		/	380V/50HZ/3Ph 5 wire(as customer's requirement)
Working noise		dB(A)	≤65~80
Normal working time		h	≥4000
Continuous working time		h	≥150
Total electric power		Kw	1.1	1.1	1.1	1.5	2.2	3
Weight		kg	80	100	120	150	200	220
Index after filtration	Moisture content	ppm	≤100
	Filtering accuracy	μm	≤5(Customerizable)

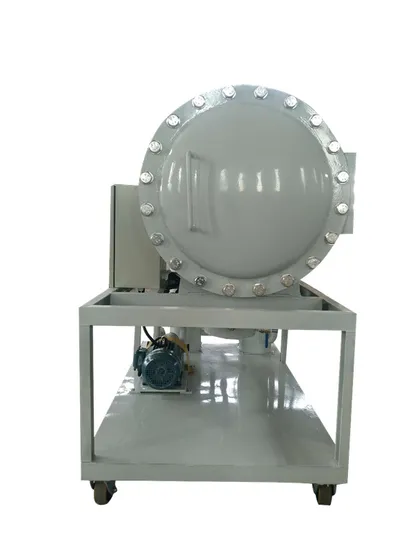

Product Photograph
