S, M, L, XL Adult Diaper Pet Pad Machine with CE
| US$350,000.00-600,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JWC-CFD-SV-III
Product Object
Baby
Designed Speed
350PCS/Min
Production Speed
300PCS/Min
Computer Control Panel
Yes
Product Specification
S, M, L, XL
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
Ivory White
Machine Direction
to Be Defined
Machine Power Source
380V/50Hz
Process
Baby Diaper Machine
Usage
98%
Type
Baby Diaper Machine
Processing Technology
Laminated Machine
Effciency
90%
After-Sales Service Provided
Video Technical Support
Service Provided
Field Maintenance and Repair Service
Transport Package
Transparent Film for Baby Diaper Machine
Specification
S, M, L, XL
Trademark
JWC
Origin
China
HS Code
84418090
Production Capacity
30 Sets
Product Description

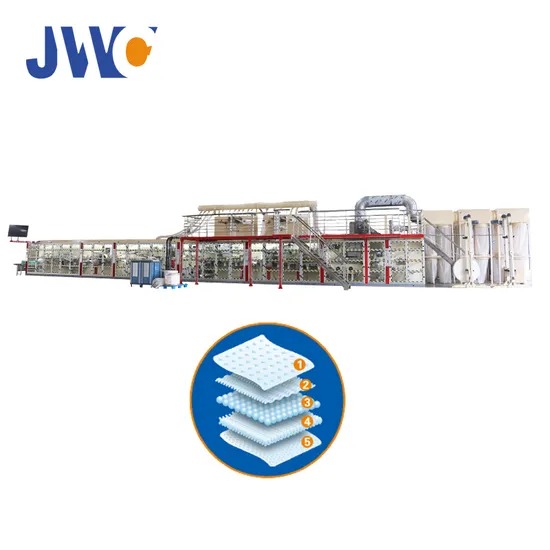

JWC-CFD-SV-III Disposable Under Pad Machine (3+5 Layers)Product Description
This Disposable Under Pad Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This Machine can produce 3&5 layers under pad. This production line can realize 100% full automatic control.
| 1.Machine frame Reasonably solid square steel frame 2. Crusher system 3. Fluff forming system 4. SAP feeding system 5. Bottom tissue feeding, roll diameter φ800mm 6. Upper tissue, roll diameter φ800mm 7.Back sheet PE film feeding, roll diameter φ600mm 8.Top sheet hydrophilic non-woven feeding, roll diameter φ800mm |
| 1 | Design speed | 300 meters/min |
| 2 | Stable working speed | 280 meters/min (treated pulp, fluff GSM 40-80/M2) |
| 3 | Qualified rate | 97% exclude the wastage due to the glue applicators and materials splicing joint |
| 4 | Efficiency | 85% |
| 5 | installation capacity | 340KW |
| 7 | Electricity | 380V 5%50HZ |
| 8 | Wire | Three phases four wires 380V/50Hz (ground wire) |
| 9 | Air pressure | 0.6Mpa |
| 10 | Total weight | About 80tons |
| 11 | Machine size | 24*8*4.5 M(L*W*H) |
| 12 | Working space | 30*11*6 M (L*W*H) |
| 13 | Machine color | Rice white ,can be changed by order |
| 14 | Product size | Width: 450-600mm to be customized, length is 450-1500mm to be customized |
| 15 | Containers | 4X40HQ |
| Auto lubricating System Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system | Human-Machine Interface Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen | Materials automatic feeding System Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility |
| Name | Brand | Origin | |
| 1 | Servo motor | Mitsubishi | Japan |
| 2 | Auto web guider | FIFE | USA |
| 3 | Touchable screen | Banner | USA |
| 4 | PLC controlling system | Mitsubishi | Japan |
| 5 | Sensor | Banner | USA |
| 6 | Safety production | Shneider | France |
| 8 | Cutter raw material | M7 | USA |
| 9 | Gear according to usage | BEM/NSK/SKF | Germany/Japan/Sweden |
| 10 | Timing belt | Optibelt or Gates | Germany/USA |
| 11 | Low voltage electronic | Shneider | France |
| 13 | Temperature controlling system | Omron | Japan |
| 15 | Pressure regulating valve | Airtac | Chinese Taiwan |
| 16 | Pneumatic element | Airtac | Chinese Taiwan |
| 17 | Solenoid valve | Airtac | Chinese Taiwan |
| 18 | Moisture separator | Airtac | Chinese Taiwan |
| 19 | Automatic fault alarm | Mitsubishi | Japan |
