Reliable Small Mini Digger for Efficient Earthmoving Tasks
| US$5,000.00-5,850.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HFT15 with Cab
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Digging Radius Max
2400mm
Digging Depth Max
1650mm
Digging Height Max
2490mm
Unloading Height Max
1750mm
Swing Radium Min
1190mm
Digging Radius Min
1320mm
Transport Package
Container
Specification
Mini
Trademark
HFT
Origin
China
HS Code
8429521200
Production Capacity
5000/Year
Product Description

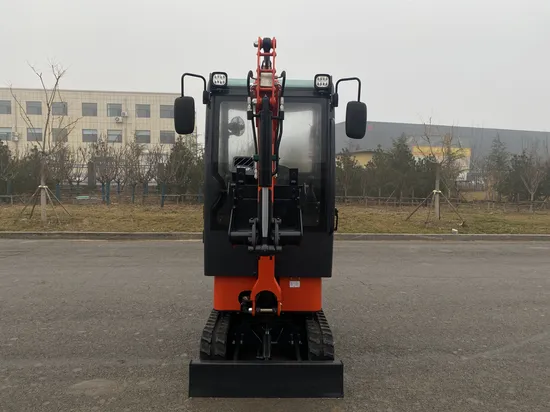

Product Name: HFT15 Mini Excavator with Pilot ControlCategory: Excavator
Others: HFT15 New Mini Excavator
Introducing the HFT-15 Mini Excavator-a true marvel of modern engineering that harmonizes raw power with compact efficiency, delivering an unparalleled performance in excavation tasks. The groundbreaking HFT15 model is outfitted with cutting-edge technology and boasts a sleek, contemporary design that sets it apart from conventional excavators. Crafted to thrive in confined spaces, the HFT-15 Mini Excavator is your perfect ally for diverse applications, including construction sites, landscaping projects, and utility installations. It boasts exceptional versatility, unmatched durability, and intuitive operation, ensuring it becomes a standout asset in any machinery fleet. Opt for the HFT-15 Mini Excavator and revolutionize your workflow, reaping the benefits of an unprecedented surge in productivity and quality.
| Model | HFT15 | |
| Performance parameters | Unit | Specification |
| Rated power | KW | 12 or 14 |
| Standard Bucket Capacity | m3 | 0.02 |
| Wheel distance | mm | 770 |
| Track total Length | mm | 1090 |
| Platform ground clearance | mm | 380 |
| Platform turning radius | mm | 733 |
| Chassis width | mm | 910 |
| Track width | mm | 180 |
| Track height | mm | 320 |
| Working range | Unit | Specification |
| Digging ground radius max | mm | 2400 |
| Digging depth max | mm | 1650 |
| Digging height max | mm | 2490 |
| Unloading height max | mm | 1750 |
| Swing radius min | mm | 1190 |
| Digging radius min | mm | 1320 |
| Dozer blade max lifting height | mm | 175 |
| Dozer blade max digging depth | mm | 325 |
| Dimension | Unit | Specification |
| Total width | mm | 1090 |
| Total height | mm | 2200 |
| Total length | mm | 2650 |
| Working weight | kg | 1500 |
| Engine | type | China engine or kubota D722 |
