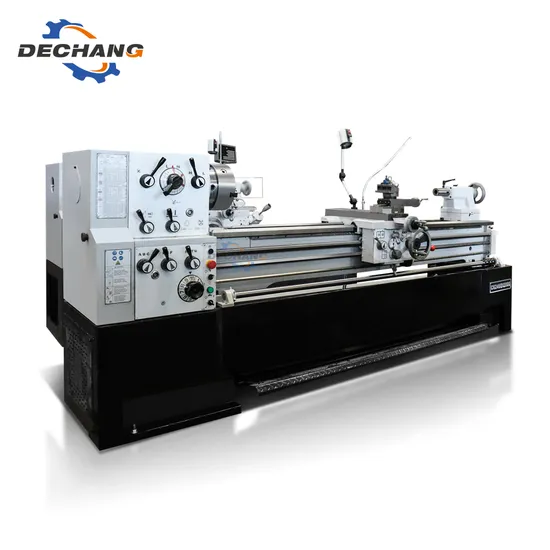

High Performance Lathe Machine C6246 Mini Metal Horizontal Gap Bed Lathe Machine

Product Description

High Performance Lathe Machine C6246 Mini Metal Horizontal Gap Bed Lathe Machine
Product Description
Product main technical specifications:

Specification	C6246
Swing over bed	460mm(18")
Swing over cross slide	270mm(10-3/4")
Swing in gap diameter	690mm(27-1/8")
Distance between centers	1000mm(40")/1500mm(60")/2000mm(80")
Valid length of gap	165mm(6-1/2")
Width of bed	300mm(11-13/16")
Spindle nose	D1-6
Spindle bore	58mm(2-1/4")
Taper of spindle bore	No.6 Morse
Range of spindle speed	12 changes, 25~2000r/min
Compound rest travel	128mm(5")
Cross slide travel	285mm(11-1/4")
Max.section of tool	25×25mm(1"×1")
Lead screw thread	6mm or 4T.P.I.
Longitudinal feeds range	42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev)
Cross feeds range	42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev)
Threads metric pitches	41 kinds, 0.1~14mm
Threads imperial pitches	60 kinds, 2~112T.P.I.
Threads diametral pitches	50 kinds, 4~112DP
Threads module pitches	34 kinds, 0.1~7MP
Quill diameter	60mm(2-5/16")
Quill travel	130mm(5")
Quill taper	No.4 Morse
Main motor power	5.5kW(7.5HP) 3PH
Coolant pump power	0.1kW(1/8HP) 3PH
Overall dimension(L×W×H)	220/275/325×108×137cm
Packing size(L×W×H)	225/280/330×112×162cm
Net weight	1645/1810/1965kg
Gross weight	1910/2115/2295kg
