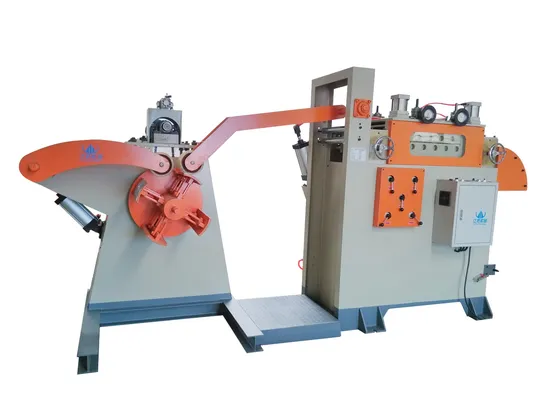

2 in 1 Decoiler with Straightener Machine for Metal Steel Plate Straightening Steel Coil Straightener with Decoiler Sheet Uncoiling and Leveling Machine

Product Description

Features of this machine
1. Uncoiler and straightener two in one style improves factory usablespace.
2. Straightening adopts balance adjusting equipment and suitable for processing higher prscision products.
3. Roller:adopts solid bearing steel and hard chrome plating treatment.
Specifications

Model	(mm) Coil width	(kg) Coil weight	(mm) Coil thickness	(mm) Coil Inter Diameter	(mm) Coil Outer Diameter	(EA) Straightening rclerquanity	(kw/4p) Motor	Expansion style
SL-300	300	2000	0.5-4.5	450-530	1200	Ф90x9	2.2	Manual/hycrauic
SL-400	400	3000	0.5-4.5	450-530	1200	Ф60x7	3.0	Manual/hycrauic
SL-500	500	3000	0.5-4.5	450-530	1200	Ф60x7	3.0	Manual/hycrauic
SL-600	600	3000	0.5-4.5	450-530	1200	Ф60x7	3.0	Manual/hycrauic
SL-700	700	4500	0.5-4.5	450-530	1200	Ф60x7	4.0	Manual/hycrauic
SL-800	800	5000	0.5-4.5	450-530	1200	Ф60x7	4.0	Manual/hycrauic

Customer's Application SL series decoiler and straightener machine is testing in our factory and working in customer's factory.
FAQ
Q: Are you a factory or trading company?
A: We are a factory which has been producing stamping automation machines for more than 20 years.
Q: What's the delivery time?
A: The standard machine is 25 to 30 working days after payment. For compact coil feed lines or whole metal stamping lines, it needs 30-70 workdays depends on different specifications and production plan in our factory,we will confirm the delivery time based on the specific project itself.
Q: Do you receive OEM or ODM?
A: Yes, we warmly welcome customers to do OEM and ODM in our factory.
Q:What's warranty time of your machine?
A:Usually the warranty time is 12 months. Also the warranty time can be extend acorrding the specific requirements.
Q:What after-sales service does YITUO provide?
A:For the standard decoiler straightener feeder machine, it's easy to install and debug it, most of our customers can do it by themselves; And what's more, our technical engineer can teach your operators how to install and operate it.
For the compact coil feed machine and complete metal stamping line,YITUO can arrange engineers to go overseas for the coil handling equipment installation. They guide the customer's operators on-site.
Q: What information you need to prepare the quotation:
1. Coil thickness (min-max)
2. Pipe diameter (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. How many tons you need per day or per month
OUR WORKSHOP AND PACKING:
