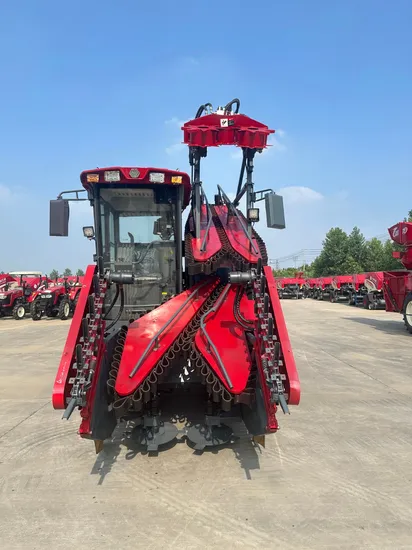

Whole Stern Sugarcane Harvester
| US$28,000.00-30,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
HONGLONG 4GD-1
Application
Sugarcane
Power Source
Diesel
Harvest method
Cutting
Drive Type
Vee belt
Transmission
Soft Shaft
Portable Harvester Type
Self-Propelled
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Warranty
One Year
Transport Package
Nude
Specification
dimension 6165*2010*3300mm
Trademark
FMWORLD
Origin
China
HS Code
84335910
Production Capacity
10000 Units
Product Description
102 horsepower disel engine with strong power,low consumption and low noise45CC HST, fast speed, flexible steering, good control
85 gearbox, the key adopt Japanese NSK bearings,with strong power
Double disc root cutter, with open bottom cutting header, so that the damage rate is lower
It is equipped with finger-plate cane holding device, which is conducive to harvest and lodging
The double wave cutter with adjustable height can easily remove the sugarcane bit and reduce the impurity content
Equipped with the bottom conveying device, conveying more smoothly. With reverse function, can quickly clean weeds
A new cab design with large space make driving more comfortable, convenient and intelligent for operator
Equipped with screen disply, timely observationof the machine working condition
Luxury ac cabin gives a better driving experience
The discharge system of the hydraulic device can control the lifting and moving up and down, which is simple to operate and fast to discharge
| Si No | Item | Parameter |
| 1 | Model | Sugarcane Harvester 4GD-1 |
| 2 | Structure | Self-propelled Rubber Track Type |
| 3 | Number of Harvesting Rows | 1 |
| 4 | Row Spacing(m) | ≥1.0 |
| 5 | Engine | Diesel |
| 6 | Matched Power(kW) | 66.2 |
| 7 | Rotating Speed (r/min) | 2400 |
| 8 | Dimension (mm) | 6165x2010x3300 |
| 9 | Driven Type | Hydraulic |
| 10 | Top Walking Speed (km/h) | 9 |
| 11 | Efficiency (hm2/h) | 0.21 |
| 12 | Weight (kg) | 3640 |
| 13 | Min Ground Clearance(mm) | 330 |
| 14 | Cabin | AC optional |
| 15 | Cutting Mechanism | Double Disc Blade |
| 16 | Cutter Transmission | Hydraulic |
| 17 | Clamping Device Type | Chain |
| 18 | Cane Holding Device | Finger Plte |
| 19 | Cane Collecting Device | Collecting Hopper |
| 20 | Rated Stacking Capacity(kg) | 500 |
