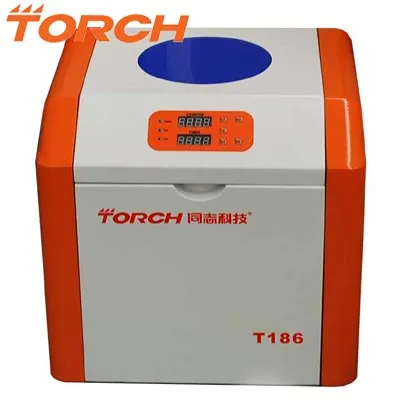

Automatic Solder Mixer Smart Solder Paste Mixing Machine
| US$1,400.00-1,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T186
Application Area
Chemical
Certification
CE, ISO, CCC
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Mixer Type
Planetary Mixer
Layout Type
Horizontal
Mixing Drum Shape
Conical
Operating type
Continuous Operating
Warranty
1 Year
Transport Package
Plywood
Specification
ISO
Trademark
Torch
Origin
Beijing
HS Code
8514109000
Production Capacity
200 Set/Year
Packaging & Delivery
Package Size
60.00cm * 55.00cm * 63.00cm
Package Gross Weight
58.000kg
Product Description
Automatic Solder Mixer Smart Solder Paste Mixing MachineThe selling point:
1. The only industry have 3 level protection function solder paste mixer.
2. Using TORCH speciaty color spray equipment, China and Germany top engineer design product appearence, have won state patent more than 6 year.
3. The biggest solder paste mixer, casing liner using mufferler design.
4. Electronician controller designed by TORCH.
5. The most improtant using Japanese panosonic motor
Introduction:
T186 applies revolution and rotation mixing method with motor, effectively mixes the solid state and liquid state equality, to achieve perfect printing and reflow effect, save the manpower. Of course, it not need to open the pot in order to reduce the opportunity of absorbing the vapor.
Product characterristic: :
1, Quadruplicity safety design
2, Easy operation
3, Strong applicability
4, Stable and low noisy
| Type | T186 |
| Protracted Precision | Enactment time`s postponed error: <0.1%, |
| repeat postponed error | <0.1% |
| Replacement Method | replacement by power failure |
| Control Method | relay |
| Repeat action | interval is not less than 0.5 second. |
| Output capability | AC250V 3A; DC24V 3A |
| Insulation intensity | 100MΩ /500DC |
| Medium intensity | 25 kvpm |
| Machine life | 1*1000000 eletricity life: 5*100000 |
| Circumstance temperature | -23ºC-60ºC |
| Circumstance humidity | 35-80%RH |
| Revolution | 450 rpm |
| Rotation | 900 rpm |
| Power supply | 220V 50HZ |
| Power | 0.3KW |
| Dimension | L390×W390×H390mm |
| Weight | 36Kg |
