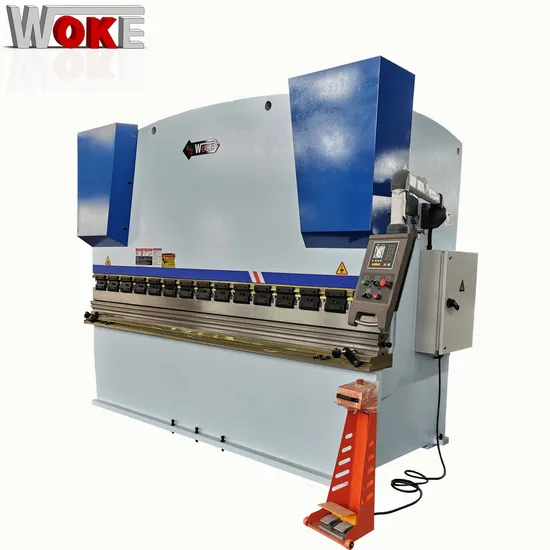

High Precision Hot Selling Steel Plate Press Brake Bending Machine CNC Hydraulic Bender Low Price 200t/3200mm
| US$6,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Control System
Estun E21 Nc Controller
Application
All Sheet Metal Bending
Power Supply
380/440/220/415 Customized
Precision
1 Degree on One Meter
Hydraulic System
Rexroth
Color
Customized
Keyword
200tons Press Brake
Bending Capacity
6mm
Nominal Pressure
200tons
Slider Travel
150mm
Bending Thickness
6mm Steel
Transport Package
Nude Packing, Steel Pallet
Specification
9CBM
Trademark
WOKE
Origin
Nantong, Jiangsu, China
HS Code
8462299000
Production Capacity
40PCS/Month
Product Description
| No | Model | Nominal pressure | Worktable length | Distance between column | Throat Depth | Stroke | Opening | Motor | Dimension |
| Ton | mm | mm | mm | mm | mm | kw | mm | ||
| 1 | 40T/1600 | 40 | 1600 | 1280 | 250 | 120 | 325 | 4 | 1850×1300×2100 |
| 2 | 40T/2000 | 40 | 2000 | 1550 | 250 | 120 | 325 | 4 | 2250×1300×2100 |
| 3 | 40T/2500 | 40 | 2500 | 2050 | 250 | 120 | 325 | 4 | 2750×1300×2100 |
| 4 | 63T/2500 | 63 | 2500 | 2050 | 250 | 120 | 360 | 5.5 | 2750×1350×2230 |
| 5 | 63T/3200 | 63 | 3200 | 2600 | 250 | 120 | 360 | 5.5 | 3450×1350×2230 |
| 6 | 80T/2500 | 80 | 2500 | 2050 | 320 | 120 | 380 | 7.5 | 2750×1400×2350 |
| 7 | 80T/3200 | 80 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3450×1400×2350 |
| 8 | 100T/2500 | 100 | 2500 | 2050 | 320 | 120 | 380 | 7.5 | 2750×1450×2380 |
| 9 | 100T/3200 | 100 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3450×1450×2380 |
| 10 | 100T/4000 | 100 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4250×1450×2380 |
| 11 | 125T/2500 | 125 | 2500 | 2050 | 320 | 120 | 380 | 7.5 | 2750×1450×2380 |
| 12 | 125T/3200 | 125 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 3750×1450×2380 |
| 13 | 125T/4000 | 125 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 4250×1450×2380 |
| 14 | 160T/3200 | 160 | 3200 | 2600 | 320 | 180 | 450 | 11 | 3450×1700×2600 |
| 15 | 160T/4000 | 160 | 4000 | 3200 | 320 | 180 | 450 | 11 | 4250×1700×2600 |
| 16 | 200T/3200 | 200 | 3200 | 2600 | 320 | 200 | 470 | 15 | 3450×1850×2860 |
| 17 | 200T/4000 | 200 | 4000 | 3200 | 320 | 200 | 470 | 15 | 4250×1870×2950 |
| 18 | 250T/3200 | 250 | 3200 | 2600 | 400 | 250 | 530 | 18.5 | 3450×1920×3050 |
| 19 | 250T/4000 | 250 | 4000 | 3200 | 400 | 250 | 530 | 18.5 | 4250×1950×3150 |
| 20 | 300T/3200 | 300 | 3200 | 2600 | 400 | 250 | 560 | 22 | 3450×2200×3130 |
| 21 | 300T/4000 | 300 | 4000 | 3200 | 400 | 250 | 560 | 22 | 4250×2250×3320 |
| 22 | 300T/6000 | 300 | 6000 | 4700 | 400 | 250 | 560 | 22 | 6100×2250×4250 |
| 23 | 400T/3200 | 400 | 3200 | 3200 | 400 | 300 | 640 | 30 | 3200×2280×3250 |
| 24 | 400T/4000 | 400 | 4000 | 3200 | 400 | 300 | 640 | 30 | 4000×2300×3600 |
| 25 | 400T/6000 | 400 | 6000 | 4700 | 400 | 300 | 640 | 30 | 6000×2350×4650 |
| 26 | 500T/4000 | 500 | 4000 | 3200 | 500 | 310 | 640 | 37 | 4000×2480×4330 |
| 27 | 500T/6000 | 500 | 6000 | 4700 | 400 | 310 | 640 | 37 | 6000×2450×4700 |
| 28 | 600T/6000 | 600 | 6000 | 4700 | 460 | 310 | 650 | 45 | 6000×2700×5710 |
