High Speed Solar Photovoltaic Panel Mounting Brackets Roll Forming Machine

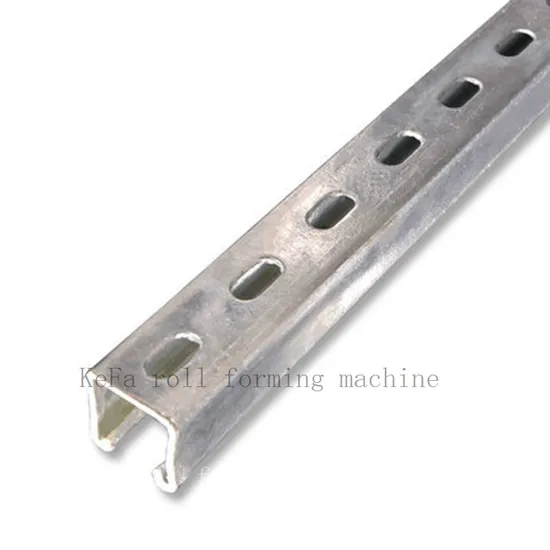

Strut channel roll forming machine is also called like seismic support roll forming machine or seismic channel roll forming machine, its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge(2.6mm) or 14 gauge(1.9mm) thick sheet metal (normally range 2-2.5mm), raw material could be Hot-rolled and cold rolled steel, Hot-dip galvanized sheet, Pre-Galvanized Steel, Mill(Plain/Black) Steel, Aluminum, Stainless Steel etc. And according to slot type, our machine could produce solid channel, slotted channel, half slotted channel, long slotted channel, punched channel, punched and slotted channel etc.
KEFA has many experience at solar photovoltaic stents roll forming machine. We exported to Saudi Arabia, Turkey, Iraq, India, Kuwait, Qatar, Pakistan, Argentina etc. We have made the strut channel profile, and American standard profile as well. The most popular size of strut channel profile is 40*21, 41*41, 41*62, and our roll forming machine could produce 3-5 sizes(eg: 41x21, 41x41, 41x62) in one machine (by manually change spacers), the working speed can reach 16m/min.
Now we have two workshops producing solar photovoltaic stents to export. If you come to visit us, we would like to show you the producing line.

We make different solutions according to customers' drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of KEFA Machinery will ensure you obtain perfectly functional profiles.Description:
This solar photovoltaic stents roll forming production line is very efficient and higher yield. In this case, we produce 5 different sizes totally and production speed is up to 16m/min. Besides, we recommend burr-free saw cutting to reduce steel wastage and manufacturing cost, reasonable range of burr improves the quality of profile and price, bringing greater benefits to customers. We also adopts the flying saw cutting system to optimize production. This is the best configuration of solar photovoltaic stents roll forming machine.
Flow Chart:
Hydraulic decoiler-Levler-servo feeder-Press- Roll former-Flying saw cut-Out table
Product Parameters

Automatic Roll Forming Machine
Machinable Material :	A) Galvanized Steel	Thickness(MM): 2-3mm
	B) PPGI
	C) Carbon steel
Yield strength :	250 - 550 Mpa
Tensil stress :	G250 Mpa-G550 Mpa
Decoiler :	Manual decoiler	* Hydraulic decoiler (Optional)
Punching system :	Hydraulic punching station	* Punching press (Optional)
Forming station :	According to your profile drawings
Main machine motor brand :	Shanghai Dedong (Sino-Germany Brand)	* Siemens (Optional)
Driving system :	Chain drive or Gear drive	* Gearbox drive (Optional)
Machine structure:	Cantilever type	* Forged Iron station (Optional)
Forming speed :	10-20 (M/MIN)	* Or according to your profile drawings
Rollers' material :	GCr 15	* SKD-11 (Optional)
Cutting system :	Post-cutting	* Pre-cutting (Optional)
Frequency changer brand :	Yaskawa	* Siemens (Optional)
PLC brand :	Panasonic	* Siemens (Optional)
Power supply :	380V 50Hz 3ph	* Or according to your requirment
Machine color :	Industrial blue	* Or according to your requirment

Detailed Photos
Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
