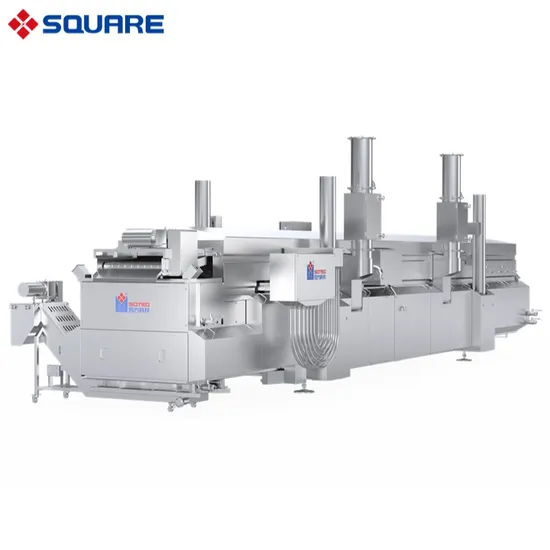

Square New Deisgn Reliable Performance Shrimp French Fries Chicken Nugget Continuous Fryer

Product Description

Production Name	Continuous Fryer
Effective Length	6m, 8m and 10m
Belt Width	600mm, 800mm and 1000mm
Capacity Range	1 to 3.6 tons/h
Customizable	Yes
Advantage	Efficient and precise control of temperature and speed Multiple slag scraping technique Hygienic design Patented Teflon belt

Centrifugal pump located at the outfeed pump the cooking oil to the infeed through a pipe, and the cooking oil flow back to the discharge slowly.
With the PID control, the thermal oil flows inside the tube heat exchangers in the fryer body. The heat from the thermal fluid oil heat up the cooking oil until it reaches the set point. The heat exchanger will heat the cooking oil until it reaches the desired temperature.
The products are fed onto the feeding conveyor first, and then are transferred the Teflon belt conveyor. Once crust is formed at the bottom of the product, they will continue to travel to the stainless steel belt for further frying until they are fried to desired temperature.
The thermal oil flow is regulated by the PID control to compensate the cooking oil heat loss during frying process. The cooking oil temperature is precisely controlled in a fluctuation range of +/-1ºC only.
1.Product Conveying SystemDirection of the products is the same as cooking oil, which ensures that the products are arranged in order.

2.Internal Oil Circulation Direction of the product flow is the same as cooking oil flow, which ensures that the products are arranged in order.
3.Lateral Sediment Scraper(Optional)For fryer with Teflon belts, the lateral sediment scraper is positioned in the middle of the fryer between the main belt and the Teflon belt.
The lateral sediment scraper removes the sediments from the bottom of the fryer before the longitudinal scraper, and keeps the oil clean.
The horizontal slag scraping system brings the slag falling on the bottom out of the fryer prior to the vertical slag scraping system, which reduces the residence time of the slag in the fryer and relieves the burden of the vertical slag scraping system.

4.Large Capacity and High EffciencyWith an hourly yield ranging from 24,000 to 60,000 pieces of burger buns, our continuous oven maximizes production capacity while ensuring high efficiency. Its adjustable baking time and temperature range contribute to efficient through put and product quality.

5.Scraping and FilteringFilter mesh fineness up to 400 microns.
The scraper removes the slags that are filtered by the stainless steel mesh out of the fryer.
The conveyor belt carries the slag to the tray.
