Doube Clolumn Heavy Duty Ck5225 Ck5240 Ck5250 Ck5263 CNC Vertical Lathe Machine

Doube Clolumn Heavy Duty Ck5225 Ck5240 Ck5250 Ck5263 CNC Vertical Lathe Machine

US$100,000.00-500,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK5225 CK5240 CK5250 CK5263
Type
Vertical Lathe
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Doube Clolumn Heavy Duty Ck5225 Ck5240 Ck5250 Ck52
Table Diameter
2250
Max. Turning Diameter
2500
Max. Height of Workpiece
1600
Max. Weight of Workpiece
10t
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8458911090
Production Capacity
200

Packaging & Delivery

Package Size
518.00cm * 470.00cm * 530.00cm
Package Gross Weight
35000.000kg

Product Description

Doube Clolumn Heavy Duty CK5225 CK5240 CK5250 CK5263 CNC Vertical Lathe Machine
Product Description
Technical specifications:
Specification Unit CK5225D CK5240D CK5250D CK5263D
Table diameter mm 2250 3200 4500 5700
Max. turning diameter mm 2500 4000 5000 6300
Max. height of workpiece mm 1600 1600 2000 3150
Max. weight of workpiece T 10 16 32 50
Table speed steps 4 steps stepless 4 steps stepless 4 steps stepless 4 steps stepless
Table speed range rpm 2~63 2~63 0.5~40 0.5-40
Max.torque of table KN·m 63 63 70 100
Max.cutting force of right vertical tool post KN 35 35 35 40
Horizontal travel of right vertical tool post mm -50~1400 -50~2150 -50~2770 -50~3450
Vertical travel of right ram mm 1000 1000 1250 1600
Right vertical tool post feed range mm/min 0.1--500 0.1--500 0.1--500 0.1--500
Max.cutting force of left vertical tool post KN 30 30 30 30
Horizontal travel of left vertical tool post mm/min -50~1400 -50~2150 -50~2770 -50~3450
Vertical travel of left ram mm 1000 1000 1250 1600
Left vertical tool post feed range mm/min 0.2--145 0.2--145 0.2--145 0.2--145
Swivel angle of vertical tool post ° -30~+30 -30~+30 -30~+30 -30~+30
Left ram section size mm 255×200 255×200 255×200 255×200
Tool section size mm 40×50 40×50 40×50 40×50
Vertical tool post rapid traverse mm/min R:2000 L:1550 R:2000 L:1550 R:2000 L:1550 R:2000 L:1550
of cross beam mm 1250 1250 1650 2650
Cross beam lifting speed mm/min 350 350 350 350
Cross beam lifting motor power kw 11 11 11 11
Main motor power kw 55 55 70 70
Overall dimensiont mm 5180*4700*5300 5180*4700*5300 5180*4700*5300 5180*4700*5300
Machine weigh T 35 43 65 90

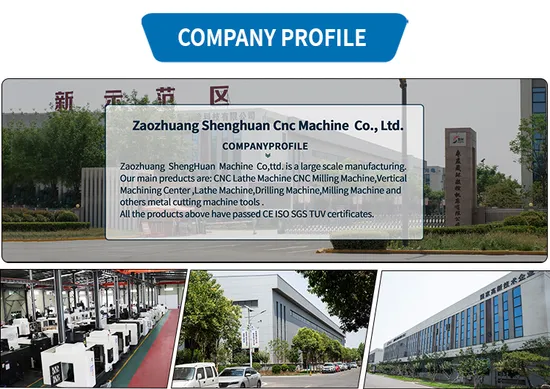

Company Profile


Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
