Single Cylinder 12cbm Remote Control Leakage-Proof Grab Used for Bulk Cargo

Product Description

Single cylinder 12cbm remote control leakage-proof grab used for bulk cargo
Discription:
It is a merging of the radio remote control technology into the single rope grab for handling of bulk materials.It is particularly designed for operation with single-hook crane and ship crane,with reliable performance and easy operation procedures.The grab could be open and unload materials from any position in the air.
Advantages:
No power supply required
Stable and no special requirement for material
Easy handling
Fast closing and opening
Crane's lifting power is converted into closing force
Low wear of hydraulic fluid
Long service life of the hydraulic system
Parmeter:

Model	SWL (t)	Dead weight (t)	Capacity (m3)	Wire rope diameter (mm)	Pulley		Overall dimensions(mm)
					Diameter (mm)	Rate	A	B	C	D	E
QSHI-C1	10	5	5	24	520	3	3635	3398	2430	3159	2450
QSHI-C2	16	6.2	6	28	520	3	3720	3483	2500	3250	2700
QSHI-C3	20	8	8	28	520	3	4008	3796	2600	3605	3000
QSHI-C4	28	9.8	9	36	650	3	4159	3960	3000	3753	3200
QSHI-C5	40	15	10	40	810	3	4596	4305	3300	3805	3200
QSHI-C6	10	5	3.3-5.0	24	520	3	3635	3398	2430	3159	2450
QSHI-C7	16	7	5.0-8.0	28	520	3	4008	3796	2600	3605	3000
QSHI-C8	20	8	6.0-10.0	28	520	3	4325	4268	2877	3957	3000
QSHI-C9	25	9.5	6.0-12.0	36	650	3	4110	3972	3030	3866	3500
QSHI-C10	28	10.5	8.0-14.0	36	650	3	4110	3972	3030	3866	3800
QSHI-C11	36	14.8	13.0-20.0	40	810	3	5033	4896	3520	4636	4000
QSHI-C12	40	16	15.0-22.0	40	810	3	5033	4896	3520	4636	4400

Drawing:

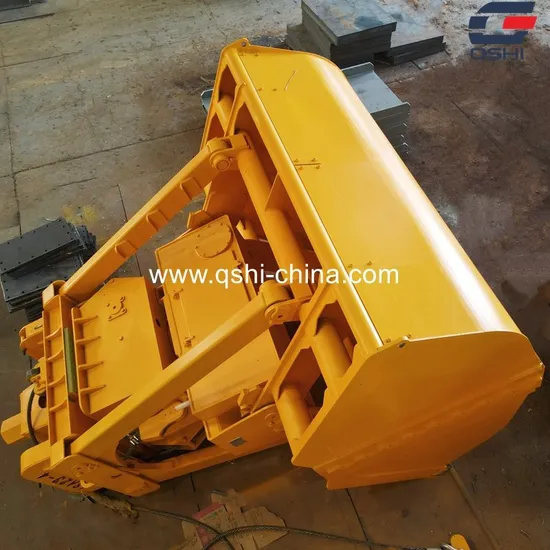

Photos for reference:
Packing and delivery:
About us:
QSHI supplies different kinds of products. High quality and favorable price.
We're pleased to get your Inquiry and we will feedback ASAP.
We stick to the principle "Quality First, Service First, Continuous Improvement and Customer Satisfaction" and aim at "Zero Defect Zero Complaint".
To perfect our service, we provide products with good quality at reasonable price.
Our Service:
Being a good adviser and assistant of client, we can help them to get rich and generous returns on their investment.
1.Pre-sale services:
a: Design customized project for clients.
b: Design and manufacture products according to clients special requirement.
c: Train technical personnel for clients.
2.Services during the sale:
a: Help clients to find reasonable freight forwarders ahead of delivery.
b: Help clients to draw solving plans.
3.After-sale services:
a: Assist clients to prepare for the construction scheme.
b: Install and debug equipment.
c: Train the first-line operators.
d: Examine equipment.
e: Take initiative to eliminate the troubles immediately.
f: Provide technical exchanging.
FAQ
ORDER INTRODUCTION:
Pls kindly send us your detailed specifications as follow if you are interested in our grabs.
1 What's the lifting material?
2 What's the cubage of the grab?
3 What's the SWL of your crane?
We will offer you the best suitable grab with best price and quality. These specifications above can make it clear about your requirements.
Thanks very much for your kindly cooperation!
