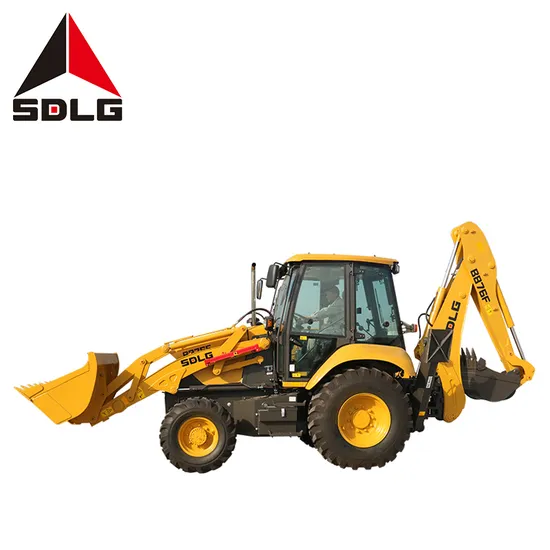

Sdlg B876f Multi-Function Loader with Reinforced Excavating Boom and Stick
| US$40,590.00-47,280.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
B876F
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Overall Operating Weight
7700kg
Max. Digging Radius
5393mm
Max. Digging Depth
4303mm
Max. Dumping Height
2693mm
Engine Brand
Yuchai
Engine Type
Water-Cooled, Supercharged
Engine Power
70kw
Emission Standard
Tier II
Min. Fuel-Consume Ratio
230g/Kw.H
Transmission Type
Power Shifting
Gears
Forward 4 Reverse 3
Transport Package
RO-RO, Container
Specification
7233*2350*3608mm
Trademark
SDLG
Origin
Linyi, Shandong, China
Production Capacity
50000unit/Year
Product Description
Sdlg B876f Multi-Function Loader with Reinforced Excavating Boom and Stick
B876F is a new design of cost-effective small multi-function machinery,
widely used in urban and rural highway construction and maintenance,
cablecasting, electricity and the airport project, municipal construction,
and other building construction engineering.
| Overall dimension | |
| L*W*H | 7233*2350*3608mm |
| Max. dumping height | 2693mm |
| Dumping distance | 830mm |
| Min. ground clearance | 346mm |
| Max. digging depth | 4303mm |
| Max. digging radius | 5393mm |
| wheel tread(front/rear) | 1928/1790mm |
| Wheel base | 2170mm |
| Min. turning radius | 4118mm |
| horizontal crossing radius | 5350mm |
| Overall parameters | |
| Operating weight | 7700kg |
| Loading bucket capacity | 1m3 |
| Rated load | 1800kg |
| Max. tractive force | 86kN |
| Digging bucket capacity | 0.18m3 |
| Max. digging force | 48kN |
| Max. breakout force | 48kN |
| Engine | |
| Model | YC4A105Z-T20 |
| Type | Inline, watercooled,four-stroke,supercharged,direct injection combustion chamber |
| Rated power | 70kW |
| Rated speed | 2200r/min |
| Engine displacement | 4837ml |
| Max. torque | 420N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 230g/kw.h |
| Transmission system | |
| Torgue converter | single-stage single-phase radial-inward flow turbine type |
| Transmission type | Power shifting |
| Gears | Forward 4 reverse 3 |
| Brake system | |
| Service brake type | Vacuum booster type |
| Parking brake type | Caliper disc type |
| Steering system | |
| Type | Load sensing full hydraulic steering |
| System pressure | 15 Mpa |
| Fill capacity | |
| Fuel | 135L |
| Hydraulic oil | 165L |
| Engine | 11L |
| Transmission | 18L |
