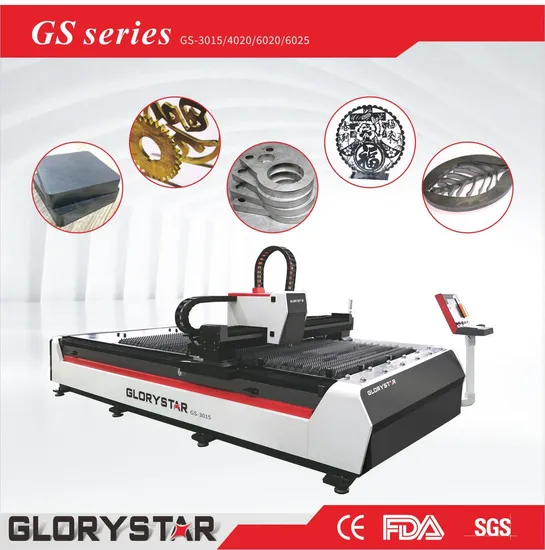

3000*1500mm CNC Metal Fiber Laser Cutting Machine

Product Description

CNC metal Fiber laser cutting machine
Product Features
GS is the most popular mode of fiber laser cutting machine. more than 2000sets of GS fiber laser cutting machines are working in the market. GS enjoys high reputation in the market by its high quality and price ration as well as high stability and efficiency. GS enjoy the honour of well-known product in China as well some overseas market. Now we have GS third generation to appreciate the customers.
Technical parameters

Model	GS-3015	GS-4015	GS-4020	GS-6015	GS-6020
Laser Power (W)	1000-3000 (Optional)	1000-3000 (Optional)	1000-3000 (Optional)	1000-3000 (Optional)	1000-3000 (Optional)
Working Area (MM)	3000*1500	4000*1500	4000*2000	6000*1500	6000*2000
Total Power Consumption (KW)	12<30	12<30	12<30	12<30	12<30
Dimensions (MM)	4800*2300*2000	6000*2700*2000	6000*3200*2000	8100*2300*2000	8300*3200*2000
Weight (T)	5	5.5	6	7.2	8

Applicable Materials
Mainly applicable for non-contact and fast cutting, hollowing and punching of carbon steel, stainless steel, steel alloy, galvanized steel and metal pipes etc.
Applicable Industry
Widely used in all kinds of metal cutting industries such as metal working, kitchen and bathroom wares, advertising & signs, lighting & hardware, electrical cabinets, auto parts, machinery and equipment, appliance, precision parts and so on.

Make Metal cutting be Simple and Efficient !
Especially suitable for contact-free cutting, hollowing or drilling of metal sheets in 0.5mm to 10mm, e.g., stainless steel, carbon steel, galvanized sheet, thin aluminum and thin copper etc. Fast and energy-efficient. Total system is high-return with low-investment.
Machine details
Laser Generator
1000W IPG fiber laser generator originally made in Germany
Comprehensive photoelectric conversion efficiency over 30%
Significant power consumption saving, cost saving

Laser Cutting Head
German Precitec laser cutting head
Imported cutting head ensures high precision and fine kerf
Automatic following system adopts double closed-loop design of speed and position
Leap-frog rising supported, highly dynamic response realizes high-speed perforation

Machine Bed Frame
Adopt high strength overall welding structure, cast aluminum cross grider, high temperature annealing treated, finished by imported 12-meter large CNC gantry milling machine. Imported precise ball screw / gear rack and linear guiderail transmission realize high precision, high efficiency and stability.

Machine Driving System
International branded high inertia servo system and gear reducer
Stable movement, reliable, precise and long service life, maintenance free, especially suitable for large size and high speed machines
