Waste Tyre Recycling Plant / Rubber Granules Making Machine Production Line
| US$38,000.00-98,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XKP-560
Voltage
380V
Structure
Vertical
Type
Tire Machinery
Type of General Rubber Machinery
Rubber Cutter
Type of Tire Machinery
Tire Shaping and Curing Press
Machine Type
Semi-Auto Rubber Powder Production Line
Application
Rubber and Plastic
Capacity
500kg/H,1000kg/H
Cooling Type
Water Cooling System
Final Product
Rubber Powder and Granules
After-Sale Service
Engineer Overseas Available
Machine Color
Customized
Transport Package
Exporting Standard (Wooden Box Packing)
Specification
CE/SGS/BV/ISO9001/; 2008
Trademark
EENOR
Origin
Qingdao
HS Code
84778000
Production Capacity
500 Set/Year
Product Description
Waste Tyre Recycling Plant / Rubber Granules Making Machine Production Line1.Main working process
2.Tire Debeader ( oil hydraulic type)
Model: LS-1200 Capacity:20-40 tires/hour
Pulling force(T): 13
Max.tire diameter 1200mm
Power(KW): 11KW
Stroke distance: 1300mm
Dimension(L*W*H): 3.6*0.78*1.02
Weight: 2500KG
3.Whole tire cutter
Model :WTC1200
Capacity:20-40 tyres/h
Motor power:5.5kw
Tire range:Max 1200mm
Dimension:2080*1000*2130mm
4.Whole tyre shredder
| Model | ZPS-900 | ZPS-1200 |
| Production capacity | 1.5-2 Ton/hour | 3.5-4Ton/h |
| Size of feeding | ≤900 mm whole tyre | ≤1200 mm whole tyre |
| Discharging particles | ≤50*50mm | ≤60*60mm |
| Motor powder | 60 kw | 110 kw |
| Discharging motor | 2.2 kw | 4 kw |
| Cutter rotate speed | 16 r/min | 31 r/min |
| Screener rotate speed | 6 r/min | 8 r/min |
| Dimension (L*W*H) | 3.5*2.4*2.4 m | 4.5*3.2*3.5 m |
| Weight | 8.2 Ton | 13.5 Ton |
Knives material: H3 , Germany standard, forged, heat treatment by high frequency, some factory only use 45# steel, the Price is more cheaper(only 1/3 of H3 ), but the life is more shorter! The life of the knives is the most important for the shredder machine.
5.Tire crusher
| Type | XKP-400 | XKP-450 | XKP-560 |
| Front roll diameter(mm) | 400 | 450 | 560 |
| Rear roll diameter (mm) | 400(grove roller) | 450 (grove roller) | 510 (grove roller) |
| Working length of rolls(mm) | 600 | 650 | 800 |
| Front roll surface speed(m/min) | 17.32 | 23.2 | 25.56 |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
| Max.nip(mm) | 8 | 8 | 15 |
| Production capacity(kg/h) | 200-300 | 600-800 | -1500 |
| Motor power(kw) | 45 | 55 | 75 |
| Overall dimension(mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
| Weight(kg) | 7000 | 12000 | 18000 |
7.Magnet separator
8.Fiber separator
Capacity:500-1000kg/h
Motor power:5.5*2+0.75 kw
Dimension:1.5*1.5*3.4(m)
Weight:about 1.5Ton
9.Rubber grinder

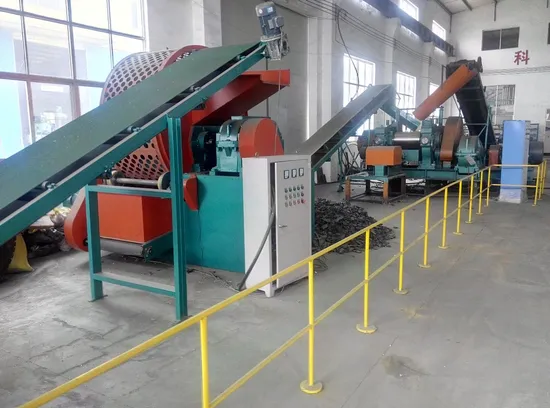

10.Machines installed in our workshop now
11.Machines installed in our workshop now
12.Loading the container
