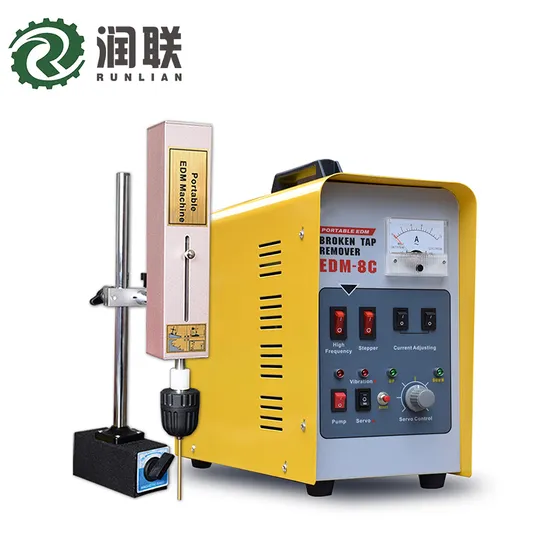

EDM-8c Broken Taps Remover Tool Broken Tap Disintegrator Broken Tap Burner Mini EDM Machine

Product Description

EDM-8C 800W Small Hole Drilling EDM Machine For Removing Broken Tap

Product Description
EDMs abide by the principle of Electrolytic Corrosion to remove broken taps,reamers, drills, screws and so on ,no direct contact, thus, no external force and damage to the work piece; it also canmarking or dropping non precision holes on conducting materials; small size and light weight, shows its special superiority for large workpieces; working liquid is ordinary tap water, economical and convenient.

Features:
1.Protable EDM machine can fast remove broken taps, drill, drift, etc., without damaging to the work piece. What applies a magnetic base and a cross stand to support the head, it can be placed at any position, adjust the processing direction comprehensively. It can be applied on any size of work-pieces, especially effective for large machine tools.
2.The short hole processing speed is about 1mm/min.
3.The work head with vibration function.

Product Parameters

Model	EDM-8C
Accessories	Toolkit
Imput Power(w)	800
Electrode Holder Diameter(mm)	0.8-10
Working Liquid	Tap Water
Max Process Depth of Spindle Servo(mm)	70
Short Hole Processing Speed(mm/min)	≈1 Electrode φ4
Processed Material	Quenched Steel
Power Box Size(mm):	380*160*300
Model And Size of Working Head(mm)	300*50*50
Package Size(mm)	498*308*392
Power Source Choices	100V or 200V, 50HZ or 60HZ
Net Weight (kg)	18
Processing Range	* Fast remove broken taps, drill, drift, screw, plug gauge without damage to the workpiece. * Processing non-precision hole and marking on metal materials such as hardened steel, hard alloy steel and copper.

Selection Of Electrode Size
The diameter of electrode recommended is half of the size of broken items generally.

Broken Items	Size	Electrodes Recommended	Remarks
Tap	M3	1.5	For the electrodes, the shorter is the better(there will be less jitter with short electrode)
	M4	2.0
	M6	3.0
	M8	4.0
	M10	5.0
	M12	6.0
	M14	7*2	Sheet electrode
	M16	8*2
	M20-M30	10*2 sheet electrode	Taps above M20 can be processed by several times
Screw	M36-M20	Method Recommended: drill a straight, triangular, square or hexagonal groove, and remove it with matching tools

Processing Method
Portable EDM machine applies a magnetic base and a cross stand to support the head, it can be placed at any position, adjust the processing direction comprehensively. It can be applies on any size of work-pieces. Here are the schematic diagrams of processing methods.
