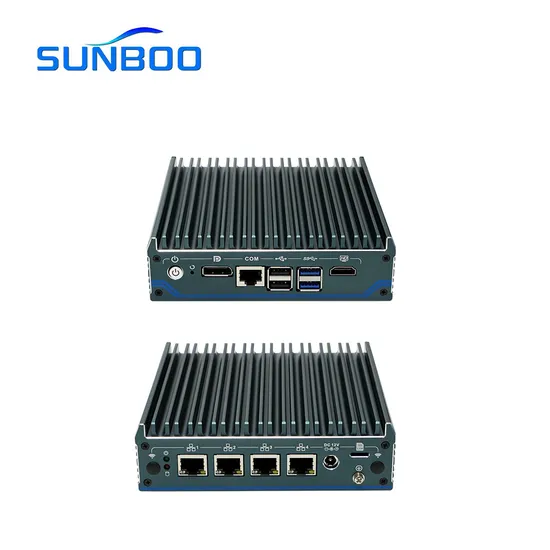

Industrial Portable Mini PC Box I3 I5 I7 All in One Computer with Windows
Basic Info.
Model NO.
N1241-10
CPU Type
Intel Celeron N100
Hard Disk Rack Type
SSD+HDD
Screen Size
No
Touch Screen
Without Touch Screen
Type
IPC
Interface
RS232, RS485 Option
Certificate
CE /CCC/FCC Class a /RoHS
Operating System
Intel /Linux
RJ45
LAN Port (10m/100m/1000m Adaptive)
HDMI
HDMI2.0 Output 4K
WiFi
2.4G 802.11 B/G/N (5g WiFi Option)
Installation
Wall-Mounted
Rack Unit
1u
Power Supply Type
DC 12V
Transport Package
Box
Specification
144 * 136.7 * 42 mm
Trademark
Sunboo/ODM/OEM
Origin
China
HS Code
8528591090
Production Capacity
100000
Packaging & Delivery
Package Size
21.50cm * 16.50cm * 13.50cm
Package Gross Weight
1.650kg
Product Description
Product Description| Specification | |
| Model | N1241 |
| Color | Metal gray (color can be customized) |
| Material | High quality all aluminum alloy |
| Processor | Onboard Intel® Processor N100 (Quad core quad threading, max turbo 3.4 GHz) |
| CPU Architecture | Alder Lake-N |
| RAM | Support 1*DDR4 3200MHz SODIMM Memory Slot, Max. 16GB |
| BIOS | AMI UEFI BIOS |
| Display Chip | Intel(R) UHD Graphics |
| Display Port | 1*HDMI,1*DP(Support Synchronous/asynchronous dual display, Resolution Max.4096x2160 @ 60Hz) |
| Front I/O | 1*Power switch,1*DP,1*RJ45 COM(support Console function) |
| 3*USB2.0, 1*USB3.1, 1*HDMI, 1*reset button | |
| Rear I/O | 4*RJ45 LAN, 1*DC IN, 1*SIM card slot |
| Expansion Slot | Support 1*M.2 2280 M-key slot (support SATA protocol) |
| Support 1*M.2 2230 E-key slot (support WIFI, Bluetooth) | |
| Support 1*M.2 3052 B-key slot (USB3.0 signal,support 4G/5G ), outside SIM slot | |
| Network | 4*Intel i225-V 2.5G LAN |
| Storage | 1*M.2 2280 slot, 1*2.5 inch HDD/SSD |
| Input Voltage | DC 12V input |
| Other Function | Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption |
| Work Temp | 0ºC~ +40ºC, surface air flow (HDD), -20ºC~ +50ºC, surface air flow(SSD), surface air flow |
| Work Humidity | 0% - 95% non-condensing |
| Certificates | CE, CCC, FCC Class A, ROHS |
| Dimension | 144 * 136.7 * 42 mm |
| Net Weight | 0.79 kg |
| Application | Firewall, VPN, network server, network security, router, ect |
