Auto Electric Wire Rope Winch with 12000lbs Pulling Capacity
| US$100.00-400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NVT12500
Pull Direction
Backward
Electric Winch Model
ATV
Working Voltage of Electric Winch
Low Voltage
Brand
Deso
Applicable Environment
Mountain Road
Certification
TUV, GS, ITS, CE
Payment
T/T L/C
Delivery Time
20-40days
Transport Package
Carton or Wooden Box
Specification
12000lbs
Trademark
Deso
Origin
China Mainland
HS Code
84253190
Production Capacity
2000PCS Per Month
Product Description

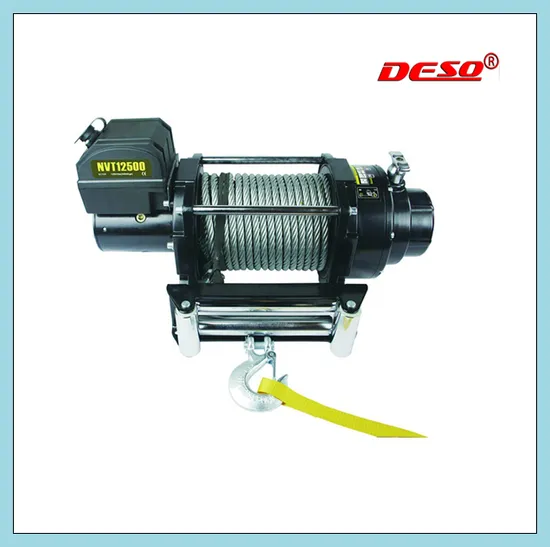

Auto Electric Wire Rope Winch with 12000lbs Pulling Capacity| NVT12500 |
| Rated line pull: 12000lbs (5454kgs) single line |
| Motor (Series wound): DC 12V with 5.6hp/4.2kW output |
| Gear train: 4 stage gear |
| Gear ratio: 516:1 |
| Clutch: Pull and Turn |
| Braking action: Automatic in the ratchet wheel |
| Fairlead: 4-way roller fairlead |
| Wire rope: 13/32"×95' (10.3mm×29m) |
| Drum size: 3.46"×8.66" (88mm×220mm) |
| Dimensions: 24.1"×8.46"×11.39" (611mm×215mm×288mm) |
| Bolt pattern: 10"×4.5" (254mm×114.3mm) |
| Net Weight: 1501bs (68kgs) |
| Line speed and motor current (first layer) | ||
| Line pull(Lbs/Kgs) | Line speed(FPM/MPM) | Motor current(Amps) |
| 0/0 | 16.1/4.9 | 70 |
| 6000/2724 | 8.5/2.6 | 150 |
| 8000/3632 | 6.6/2.0 | 240 |
| 10000/4540 | 4.9/1.5 | 290 |
| 12000/5454 | 3.3/1.0 | 380 |
| Line pull and cable capacity | ||
| Layer of cable | Rated line pull per layer(Lbs/Kgs) | Cable capacity per layer(Ft/M) |
| 1 | 12000/5454 | 21.0/6.4 |
| 2 | 9900/4495 | 46.9/14.3 |
| 3 | 8400/3814 | 77.1/23.5 |
| 4 | 7300/3314 | 95.1/29.0 |
Packing & Delivery
If you have any questions or need more details, please feel free to contact us, we are more than pleased to do any help. Thanks!
