Patented Magnetic Coupling Seal Agitator Zero Leakage Industry High Pressure Vessel
| US$247,000.00-268,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FCHA
Function
Storage Pressure Vessel, Separation Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Material
S30408, Q345r, S32168
Pressure
Customized
Storage Medium
Customized
Pressure Level
Customized
Condition
New
Rotation Speed
230r/Min
Power
110kw
Seal Type
Magnetic Seal Zero Leakage
Total Weight
47618kg
Lead Time
100 Days
Oversea Branch
California, USA
OEM
Available
ODM
Available
Specification
34.5m³
Trademark
LUHAO
Origin
China
HS Code
84198990
Product Description

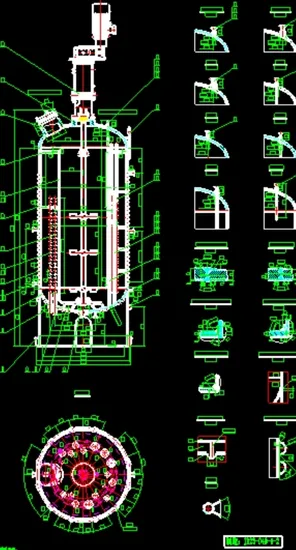

Vessel Capacity m³: 34.5 Material: S30408+Q345R Design pressure MPa: 7.0 Design temperature ºC: 100 Work pressure MPa: 6.0 Work temperature ºC: 80 Working life: 10 years External half tube Capacity m³: 1.9 Material: 20/Q345R Design pressure MPa: 0.6 Design temperature ºC: 165 Work pressure MPa: 0.5 Work temperature ºC: 150 Medium: Steam Heat exchange area m2: 85.5 Coil tube Capacity m³: 0.60 Material: S32168 Design pressure MPa: 0.6 Design temperature ºC: 30 Work pressure MPa: 0.5 Work temperature ºC: 7 Medium: 7ºC water Heat exchange area m2: 60.6 Total weight Kg: 47618| *For confidential reason, the drawing is in low definition. Please contact us for more information. |
| MODEL | FCHA1000-2000L | FCHA3000-5000L | FCHA6000-8000L | FCHA10000-15000L | FCHA15000-25000L |
| CAPACITY | 1000-2000L | 3000-5000L | 6000-8000L | 10000-1 5000L | 15000-25000L |
| WORK PRESSURE MPa | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1-10.0 | -0.1 -8.0 |
| WORK TEMPERATURE C° | -15-320 | -15-320 | -15-320 | -15-320 | -15-320 |
| rpm | 0-320 | 0-320 | 0-320 | 0-320 | 0-320 |
| DC motor power W | 3.0-11.0 | 11.0-22.0 | 15-37.0 | 22.0-55.0 | 37.0-75.0 |
| Main materials | 09MnNiDR/16MnDR (low-temperature steel), 15CrMoR (high-temperature steel), stainless steel S30408/S32168/S31603, S39042, titanium material, duplex steel, shackle material, Hastelloy alloy, zirconium material, Monel, and other materials used for explosive composite plates. | ||||
| Heating form | Jacket thermal oil, jacket steam, outer half pipe, inner coil pipe; Electric heating/flue gas heating (435ºC). | ||||
| Mixing form | Disc turbine type, asymmetric turbine type, three blade impeller type, disc inclined blade, four wide blade, propulsion type, impeller type, anchor type, frame type, screw belt type, etc. | ||||
| Shaft sealing form | Magnetic coupling drive with static sealing, zero leakage, long service life, simple installation, safe and environmentally friendly. | ||||
| Remarks | Other special requirements, touch screen intelligent control, program control, and connection to DCS systems shall be designed, manufactured, and configured according to user needs. | ||||
