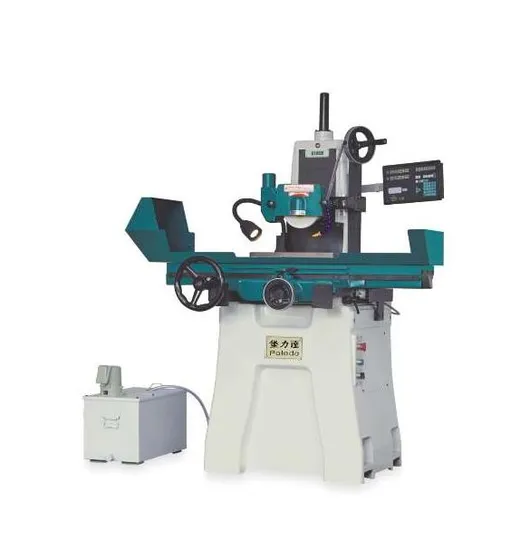

M618 Manual Surface Grinding Machine Multifunctional Precision Surface Grinding Machine
Basic Info.
Model NO.
M618
Type
Surface Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Frame
Specification
1350*1050*1850mm
Trademark
POLEDA
Origin
China
HS Code
84601100
Production Capacity
200PCS/Month
Product Description
Mechanical prof pertiesMachine structure: The main castings of the machine are made of high-grade cast iron, and through annealing treatment, to eliminate internal stress, to ensure high precision, high rigidity, and extend the life of the machine. Slide way: The machine left and right and front double V slide way adhesive wear-resistant resin TI URCITE-B, and precision shovel flower, not only smooth sliding and wear-resistant, the most suitable for forming and grinding.
Cylindrical straight spindle: The machine adopts P4 ultra-precision angular roller bearing, low noise, no vibration, large torque under high-speed rotation, suitable for heavy cutting and all kinds of forming grinding.
Automatic lubrication system: the use of circulating automatic lubrication system. When the main spindle starts, the lubricating oil automatically circulates immediately to provide forced lubrication for each screw and slide, which can greatly reduce the wear degree of slide. An oil mirror is installed above the column to monitor the lubrication condition.
| Product Name | ||||
| Product Name | Grinding machine | |||
| Product model | 618 | |||
| Product technical parameters | ||||
| 1 Table size | 150*450MM(6*18'') | |||
| 2 Maximum grinding length | 475MM(18-3/4'') | |||
| 3 Maximum grinding width | 160MM(6-1/3'') | |||
| 4 Distance between spindle center and table surface | 350-400MM(13.8-15.7'') | |||
| 5 Standard disk size | 150*350MM | |||
| 6 Left and right feed/manual stroke | 485MM(19'') | |||
| 7 Front and rear feed/manual stroke | 160MM(7'') | |||
| 8 Hand wheel feed (per turn) | 5MM(0.2'') | |||
| 9 Hand wheel feed | 0.02MM(0.001'') | |||
| 10 Lift feed/hand wheel feed per scale | 0.005MM(0.0002'') | |||
| 11 Grinding wheel size (diameter * width * aperture) | 180*16*31.75MM(7*2/3*1-1/4'') | |||
| 12 Spindle speed (50/60HZ) | 2800RPM | |||
| 13 Spindle motor | 1.5HP | |||
| 14 Weight (approximate) | 800kgs | |||
| 15Machine size (L * W * H) | 1350*1050*1850MM | |||
| Grinding machine configuration | Accessories name and specification | quantity | ||
Standard parts for machine tools | 1,Grinding wheel and flange | 1 | ||
| 2,Wheel removal wrench | 1 | |||
| 3,Hexagonal wrench | 1 | |||
| 4,Leveling screws and foot pads | 1 | |||
| 5,Grinder guide oil | 1 | |||
| 6,Toolbox and adjustment tools | 1 | |||
| 7,Hanging rings | 1 | |||
| 8,Grinding wheel | 1 | |||
| Special parts for machine tools | 9,Grating electronic ruler | 1 | ||
| 10,Detail disk | 1 | |||
