Conveyor Belt Machine for The Hole Perforating Machine

Product Description

★Detail: The full-automatic punching machine can be applied to the punching process of endless or open end transmission industrial belt, air suction belt, PVC belt and other rubber belts. The drill bit directly penetrates the bottom of the belt, and the hole groove is clean without burrs, without secondary processing. High speed and efficiency, with an average of one hole in less than 1 second, 8 times the efficiency of labor, environmental protection and safety, which greatly reduces the production cost for the enterprise.
★Features
1.Automatic programming, one key processing
2.High speed and efficiency, one machine can replace four manual machines
3.Simple operation, zero foundation, 3 minutes to learn
4.Intelligent and accurate, the hole and groove are clean and free of burrs
5.Subvert the tradition and realize full-automatic CNC Mechanical drilling in the industry
6.Belts width 1000mm/1600mm/2000mm/3000mm can choice the right model
7.You can choice the different sizes holes diameter
8.Have a vacuum ceaner for you

★Technical Datasheet

Max.Belt Width	Max endless belt length	Max.Belt Thickness	The Hole Size	High Accuracy
1000mm&2000mm&3200mm	unlimited	12mm (high thickness can be customized)	2,3, 4, 5, 6, 7, 8mm and etc	1mm

★Machine Detail

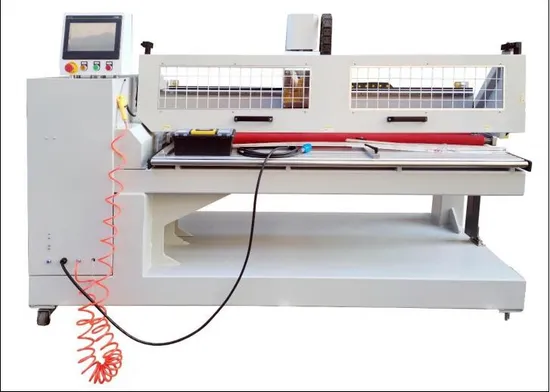

If you need,you can add a protective fance. like this picture:
