Rope Ragger Machine for Paper Pulp / Ragger Used in Paper Mill

Product Description

Product Description
The Pulper Rogger is used in the hydraulic pulper to remove various entanglement impurities in waste paper pulp, such as iron wire, rope, plastic, cotton yarn, etc. The machine has advantage of higher work efficiency, lower energy consumption, simple structure and easy to operate and maintain, etc.
Advantage
1. Ragger and Rope Cutter are used together with pulper,to drag the rope out of pulper and cut off according to requirement,for easy transportation .2. Long moving route of cutter to avoid rope block and plug.3. Designed with double hydraulic cylinders to ensure enough cutting force.
Detailed Photos
Product Parameters
Structure and Principle

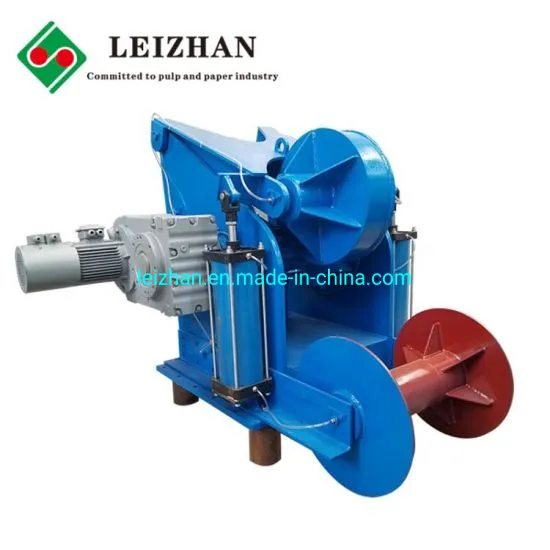

Ragger is made up of rack, motor, reducer, pressing wheel, landing gear, reel and guide wheel, etc. The motor drives the reel via reducer. The reel runs slowly and pulls out ropy impurities. The running speed and direction of twined rope is adjustable accordingly. The twined rope is compacted by compressing wheel and the pressure is also adjustable by landing gear. Guide wheel supports the twin rope and reduce its running resistance. The ragger structure is simple and compact.

Model	ZRM
Roping Speed (m/h)	0-60
Motor Power (KW)	4
Pressurize Mode	Pneumatic
