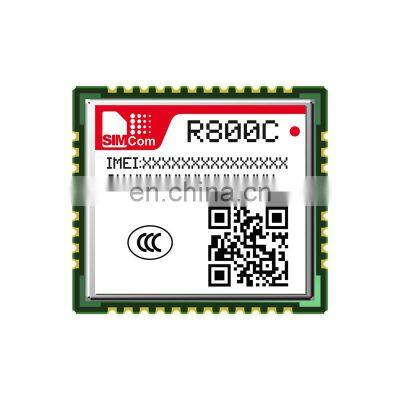

850/900/1800/1900MHz 2G GPRS GSM Wireless Communication Module SIMCom R800C

Product Description

Product Description
DescriptionR800C SIMCom GSM/GPRS Module● The R800C is a Quad-Band GSM/GPRS module in a LCC type which supports GPRS up to 85.6kbps data transfer. It has strong extension capability with abundant interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's applications.● The R800C adopts LCC form factor and is compatible with SIM800C, which greatly facilitates more compatible product design for the customer needs.● Due to the unique combination of performance, security and flexibility, the module is ideally suited for many applications, such as smart meter, security, remote diagnostics etc.Product Advantages● Small size dual-band GSM/GPRS module● LCC form factor, compatible with SIM800C● Low Power consumption● Embedded TCP/UDP protocolsGeneral FeaturesSpecifications for SMS via GSM/GPRS• Frequency Bands 850/900/1800/1900MHz• GPRS multi-slot class 12/10• Dimensions 17.6*15.7*2.3mm• Weight 1.3±0.1g• Supply voltage: 3.4 ~ 4.4V• Operation temperature -40℃ ~ +85℃• Compliant GSM phase 2/2+ Class 4 (2W @ 850/900MHz)• Compliant GSM phase 2/2+ Class 1 (1W @ 1800/1900MHz)• Control Via AT Commands(3GPP TS 27.007, 27.005 & SIMCom enhanced AT Commands)• Low Power consumption• Point to point MO and MT• SMS cell broadcast• Text and PDU modeInterfacesSpecifications for GPRS Data• Analog audio interface• UART• (U)SIM card(1.8V/3V )• RTC• ADC• GPIO• Antenna: GSM• GPRS class 12: Uplink/Downlink up to 85.6Kbps• PBCCH support• Coding schemes CS 1, 2, 3, 4• PPP-stack• USSDSoftware FeaturesCertifications• 0710 MUX protocol• Embedded TCP/UDP protocol• FTP/HTTP/MQTT/NTP• LBS*• SSL/TLS*• TTS*• EAT*• 3C/SRRC/NAL• CE/FCCWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
