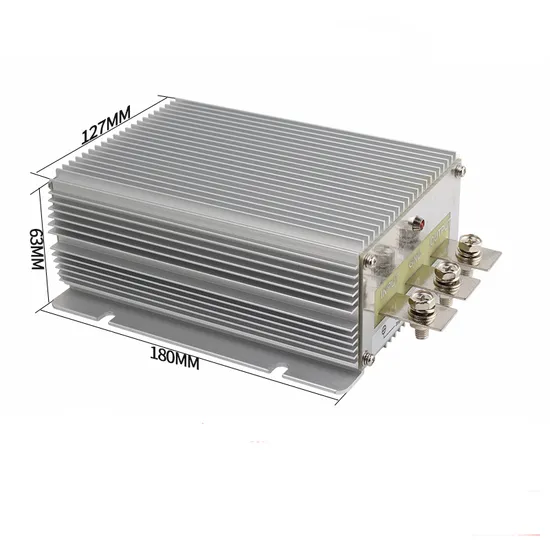

Waterproof 48VDC to 13.8VDC 60A 828W DC DC Buck Converter
Basic Info.
Model NO.
SDJ-48S13R860
Driving Method
LED Regulator Voltage
Certification
CE, RoHS
Power Supply Mode
Constant Voltage Source
In-Out
Step-down Type
Power Supply Voltage
48VDC
Brand
Smun
Output Rated Power
828W
Input Voltage Range
35-63VDC
Output Voltage
13.8V
Output Current
60A
Efficiency
up to 95%
Waterproof
IP68
Working Temperature
-40°c to +80°c
Warranty
1 Year
Weight
1.5kg
Have in Stock
Yes
Transport Package
Carton Packed
Specification
180*127*63mm
Trademark
smun
Origin
China, Zhejiang
HS Code
8504401400
Production Capacity
50, 000 Per Month
Packaging & Delivery
Package Size
30.00cm * 15.00cm * 10.00cm
Package Gross Weight
1.500kg
Product Description
| Features: 1. 100% full power & stable current output 2. 100% Imported components 3. Wide input voltage from 35-60Vdc 4. Industry grade DC48V to DC13.8V step-down converter, high efficiency up to 95% 5. 100% waterproof & anti-shock protection, Ultra compact size, light weight 6. According: CE/RoHS, IP68 design 7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection 8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating 9. Non-Isolated Module, 10. 1 year warranty, lifetime up to 100,000 hours. Specifications:
|
