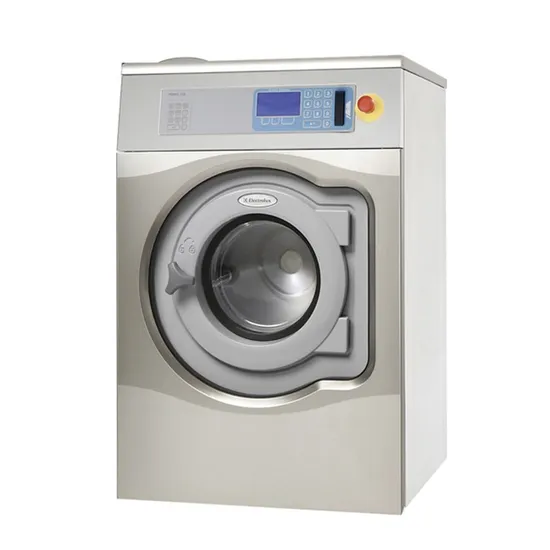

ISO6330 International Standard Automatic Washing Machine Fabric Water Shrinkage Lab Testing Equipment (XD-C18)

Product Description

ISO6330 International Standard Automatic Washing Machine Fabric Water Shrinkage Tester Product Description
Introduction: This machine is used to test the dimensional stability of fabrics or garments after washing, and to evaluate the effect of detergents or other chemical reagents. It is also designated as a reference machine in washing machine manufacturers or R&D institutions.
Compliant with standards: ISO 5077, 6330; IEC 60456; BS EN25077, 26330; BS4923, 5807; IWSTM31; M&S P1,P1A, P3A, P12, P91, P99, P99A, P134; GB/T8629
Product Features:
1. The design of the suspended drum can perform forced dehydration
2. The inlet and outlet space is small, but the water and detergent are fully utilized
3. Dual control of volume and water level
4. The built-in water level control can improve the accuracy
Volume control accuracy ±0.2L/bath
Water level control accuracy ±0.8L/bath
5. With CLARUS control-full program electronic timer
6, with ISO 6330 specification program card
7. The frequency controller motor system makes the degree flexible and the speed accurate
8. The panel and parts of the machine are made of stainless steel
9. Optional accessories package can be used with OPTI-DRY tumble dryer for stability test
Product Parameters

Water temperature	cold water: 15±260°C
Hot water	maximum (60±2)
Water pressure	(240±50) kpa
Ambient temperature	(20±5)°C
Water volume control accuracy	±0.2L
Water level control accuracy	±0.8 L
Inner drum diameter	520mm
The inner drum depth	315mm
Inner drum volume	61L
Outer cylinder diameter	554mm
Water accumulation in the outer drum	(1800±5)ml
Outer drum material	stainless steel
Machine size	720×690×1315 mm
Volume	0.85m2
Net weight	184Kg
Gross weight	203Kg (transportation weight)
Power requireme	3-phase 380VAC, 32A
