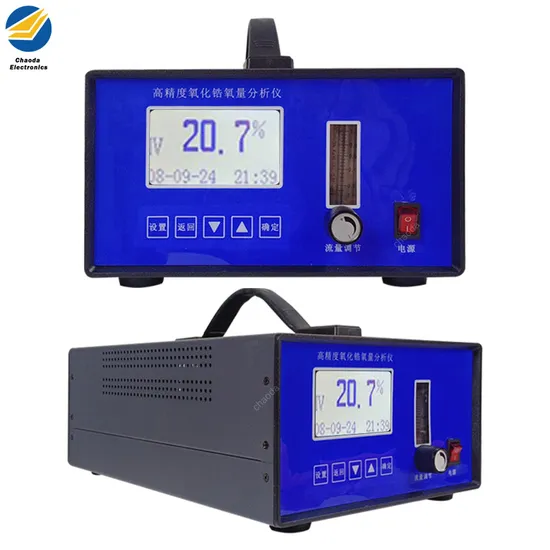

Zirconia Microoxygen Analyzer High-Precision Benchtop Portable Oxygen Detection

Product Description

Product Description Features:
* New pattern long-life conversion ion current tester with fast response and high sensitivity
* N2 or O2 concentration display
* Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life
* Setting alarm value freely
* High precision, automatic temperature compensation, eliminating the impact of environmental temperatur
Product Parameters

Test principle	zirconia
Display mode	4 bits LED display
Test range	0 ~ 10/25.00% O2
Expanded range	0 ~ 10/25/40.00% O2 (oxygen-enriched combustion)
Resolution	0.01%
Accuracy	≤±1.5%FS
Repeatability	≤±1%
Response time	T90≤30S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 0~5V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication Port	RS232 (default) or RS485
Calibration mode	online one-point calibration
Power supply	AC220V±10% 50/60Hz
Operation temperature	Gauge: -10 ~ +50ºC Probe: low-temperature type,0 ~ 350ºC mid-temperature type,0 ~ 700ºC
Install Hole Cut	Φ50mm ~ Φ90mm
Connection way	Cable (8 meters for standard equipment)
The length of the probe	1 meter in usual (other length customizable)
Serving life	>3 years (under normal use)
Install mode	inserting mount and DN65 standard flange for the probe,wall mount for the gauge

Detailed Photos
FAQ FAQ:
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
