Spindle Bore 440mm Heavy Duty CNC Oil Pipe Thread Lathe Machine Qk1343

Product Description

Product Description

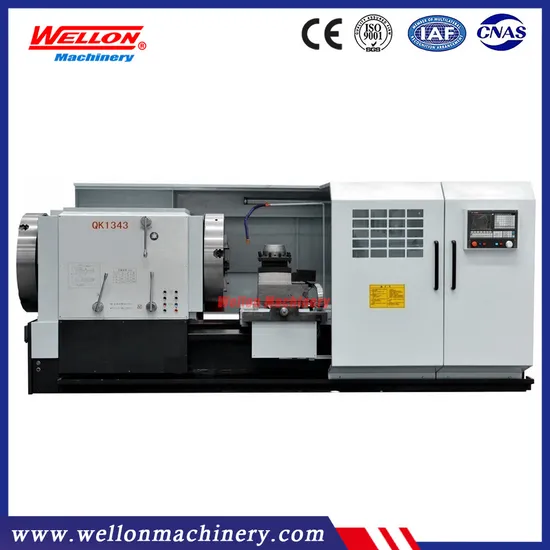

CNC Oil Pipe Thread Lathe Machine Spindle Bore 440mm QK1343

Product Parameters

CNC Pipe Threading Lathe Machine tool is mainly designed to process all kinds of internal and external pipe threads including
metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing
the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping
and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling
and so on.
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Technical Parameter:

Item		Unit	QK1343
Max dia.swing over bed		mm	1000
Max dia.swing over cross slide		mm	610
Max.length of work-piece		mm	1500
Width of bed		mm	755
Spindle bore		mm	440
Power of spindle motor		Kw	22
Mode of spindle speed			Two gears, smooth adjustment
Range of spindle speed		r/min	Low:23-120 High:65-258
Max.traverse of X/Z		mm	X:550 Z:1250
X/Z rapid traverse		mm/min	4000
X-axis motor	Speed	r/min	1500
	Torgue	N.m	18
	Power	Kw	2.8
	Speed	r/min	1500
Z-axis motor	Torgue	N.m	22
	Power	Kw	3.5
Tailstock quill	Diameter	mm	140
	Travel	mm	300
	Taper		Morse NO.6
Electric tool-post	Model		SLD170A04N
	No.of tool stations		Vertical four-station
	Dimension	mm	40x40
	Turret indexing time	S	5.6
Chuck			K66-1000 four jaw electric chuck
Positioning accuracy		mm	0.020
Repositioning accuracy		mm	0.01
Overall dimensions(L*W*H)		mm	5000×2100×2100
Machine weight		T	13

Standard accessories:
Fanuc 0i TF controller
4 position NC turret
Coolant system
Lubricating system
Work lamp
Semi closed cover
Manual tail stock
Double chucks
Rear support brackets
Pad iron
User manual
Operate tools
Optional accessories:
CNC system Siemens, GSK etc
Servo turret, Hydraulic turret, 6 position turret
Chip conveyor
Full closed cover
Hydraulic tail stock
Steady rest
Follow rest
Grinding attachment
