CFL-100 LNG Station Used Cryogenic Liquid Gas Storage Tank 100m3 LNG Storage Tank

Product Description

Product Parameters Cryogenic storage tank Description:
1. Cryogenic storage tank series adopts integrated design and leaves the factory after overall commissioning: the tank, pipeline, base, vaporization and pressurization are fully integrated, no installation and commissioning on site, zero distance from gas equipment, and low loss.
2. High vacuum multi-layer adiabatic winding, ultra-low heat conduction structure design, high vacuum maintenance system, and perfect multi-stage vacuum pumping process to ensure that the product has better vacuum performance.
3. Based on many years of experience in low-temperature foreign-funded enterprises and extensive research on customer needs, the internal and external pipelines are optimized to provide standard interfaces such as double charging, large-diameter pressure increase, overflow, and venting. Ensure stable gas pressure and flow under the conditions.
4. The connections between the pipelines are welded and card connected, which reduces the possibility of medium leakage, and is safer to use and easier to maintain.
5. The outer cylinder has two types of stainless steel and carbon steel paint to choose, to meet the appearance needs of different customers, according to customer requirements, independent design.
Basic Technical Data:

Item	Unit	Standard Specification		Remarks
		Interior Layer	Outer Shell
Gas Tank Type		II
Medium of Tank		LNG/CNG
Density of Medium	Kg/m3	About 0.426 x 103
Working Pressure	MPa	1.2	-0.1
Design Pressure	MPa	1.44	-0.1
Real Capacity of Tank	M3	54		Filling Ratio 90%
Outsize Capacity	M3	60	33.6(interlayer)
Diameter	Mm	Φ2500	Φ3000	Other size can be customized
Design Temperature	°C	-196	50
Working Temperature	°C	-162	Ambient temperature
Main Material		06Cr19 Ni10(Austenitic stainless steel)	Q345R
NDT(Nondestructive testing)	%	100%RT (Type A,B)	20%RT/100%MT	JB/T4730-2005 150/ASME
Insulation Form		Filling Vacuum pearlescent sand	Double-layer vacuum powder insulation were used to maintain vacuum to ensure good insulation effect
Design life	Year	20
Design, Manufacturing and Inspection Standard		GB150/ASME		Other standard can be support

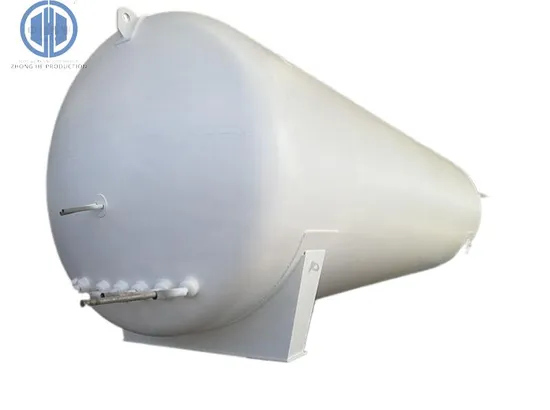

Horizontal Type Vertical Type

Vertical Type(Other size can be customized)
No.	Model	Outline Size	Net Weight(KG)/+-10kg
1	ZH-VB5-0.8	Φ1916*5040	3830
2	ZH-VB10-0.8	Φ2316*5808	5465
3	ZH-VB15-0.8	Φ2316*7725	7530
4	ZH-VB20-0.8	Φ2416*8920	9370
5	ZH-VB30-0.8	Φ2920*8574	13060
6	ZH-VB50-0.8	Φ3120*11780	19505
7	ZH-VB60-0.8	Φ3020*14465	23935
8	ZH-VB100-0.8	Φ3424*17666	39135

Horizontal Type(Other size can be customized)
No.	Model	Outline Size	Net Weight(KG)/+-10kg
1	ZH-HB5-0.8	Φ1916*4572	3950
2	ZH-HB10-0.8	Φ2316*5398	6050
3	ZH-HB15-0.8	Φ2316*7258	7845
4	ZH-HB20-0.8	Φ2416*8640	9470
5	ZH-HB30-0.8	Φ2916*8289	12800
6	ZH-HB50-0.8	Φ2916*12729	19160
7	ZH-HB60-0.8	Φ3424*14929	21760
8	ZH-HB100-0.8	Φ3424*16440	38460

Product Description
Advantages: 1. Inner vessel:
The Austenitic stainless steel(06Cr19Ni10) material which is suitable for cryogenic working condition is adopted. The structure design is optimized and reasonable.
2. Inner pipeline:
The flexible design and inspection is to ensure the quality and appearance of the products. Unique energy-saving pipeline design can ensure the safe use of the product in any medium.
3. Outer vessel:
Using Q345R materials, it is equipped with special stainless steel transport support, and lateral lifting lugs to transport easily and reduce the installation cost greatly.
4. Vacuum insulation:
We use unique process, Vacuum pearlescent sand filling which is good thermal insulation effect and high vacuum multilayer insulation, so that our products have excellent vacuum insulation performance.
5. Valve piping system:
a.The structure is compact. The pipe length is less than that of the conventional tank, and the heat loss of the external pipe is effectively reduced.
b.The combination valve reduces the number of welded joints to improve safety and reliability, and reduce maintenance costs.
c. With all stainless steel piping design, it provides reliable performance for long service.
6. Safety:
The storage tank is equipped with a double safety discharge system with two safety valves and two bursting discs, which enables one of them to be isolated while the other is maintained or under repair.
7. Outer surface treatment:
It is shot blasted and protected with two layers of coating: high anti-corrosion primer followed by a reflective white polyurethane epoxy topcoat.

Our Advantages Quality Control:
1.Product technology level: They are designed, manufactured, inspected, and accepted in accordance with advanced European and American national standards and specifications, and meet the requirements of Chinese national standards and specifications.
2.Overall product quality assurance: Ensure that the product design, manufacturing, inspection, and acceptance processes (Design→Procurement→Component manufacturing and welding→Assembly→Inspection and Testing→Non-destructive Testing →Final assembly and packaging before delivery) are effectively implemented in strict accordance with the requirements of the ISO9001 quality management system Control and form records, the buyer can select control points to the site for inspection and confirmation as required, and the factory will provide the necessary working conditions.
Detailed Photos FAQ F-A-Q
1. Q:What information needed if we sent you the inquiry of the tanks?
A:Important for us is the capacity, working pressure and the working medium is most important, and then your special request is also very important. If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
2. Q:How about quality of your products?
A:All the cryogenic liquid tanks are new. All the material come from our direct suppliers, and all confirm with the national standard.
3. Q:How can you guarantee your tanks quality?
A:For cryogenic liquid storage tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
4. Q:Do your tanks include the cryogenic pump and vaporizer?
A:We can also provide cryogenic pump or vaporizer if clients requires.
5. Q: How about the delivery time?
A:Usually we need about 45 work days produce time. 30 days after receiving the full payment.
6. Q: What about the guarantee?
A:All products before delivery to provide a certificate of product quality,one years warranty ,life-long maintenance, Contact telephone : +86 18020065576/18602239056, 24 hours for you service.
7.Q: What should i do for the quality problems?
A:If you meet the LPG tank quality problems please send the products photo to me first ,our after service department will deal with for you as soon as possible.
