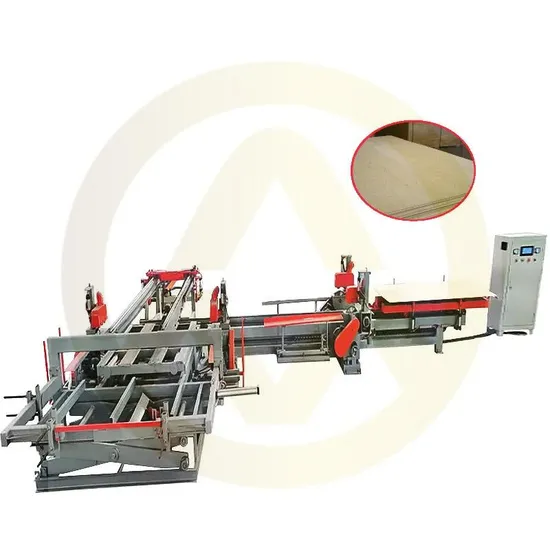

Edge Cutting Saw Machine for Plywood Cutting From Linyi

Product Description

Detailed Photos
Product Description
TECHNICAL PARAMETERS

Model	DDS48
Main frame material	100*120 mm square steel tube
Cutting size	1220*2440 mm
Cutting thickness	maximum 60 mm
Diagonal tolerance	less than 1 mm
Straightness tolerance	less than 0.5 mm
Saw head	Casting, fine finishing
Bearings	NSK (Japan brand)
Voltage standard	380V, 50HZ
Pneumatic element	AKS
PLC brand	SIMENS
Touch screen displayer	SIMENS
Main elctrical parts	CHINT
Inverter	DELTA
Feeding speed	0-30 meters per minute, adjustable
Line speed	5315 meters per second
Saw blade speed	6800 turns per minute
Electrical control panel	dust-free and powder painting
Total Motor power 40.4 KW	main saw blade head 7.5 KW, 4 pieces
	small saw blade head 1.1KW, 4 pieces
	lift table motor 3 KW, 1 piece
	working table motor 1.5 KW, 2 pieces
The first saw guide rail	30 mm diameter , Six arrises guide
The second saw guide rail	30 mm diameter , cylindrical guide
Saw blade	4 big saw blade, 4 small saw blade (Germany BAK brand)
Gross weight	4800 KGS (fixed with screw and can load with 1*40HC container)

Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3-Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.
Certifications

FAQ
Frequently Asked Questions
1.Can the product be customized?
Yes, we support product customization. Customize different products according to your needs.
2.Does the product have after-sales service?
Yes, we offer both online and offline service with a one-year warranty and lifetime after-sales.
3.Why choose us?
Excellent quality and service, as well as cost-effective products.
4.How to ensure the quality of the product?
Welcome to our factory to see the production process.
5.Who is responsible for the installation and commissioning of the machine?
We have more than 15 technicians on site to guide, install and commission the equipment.
