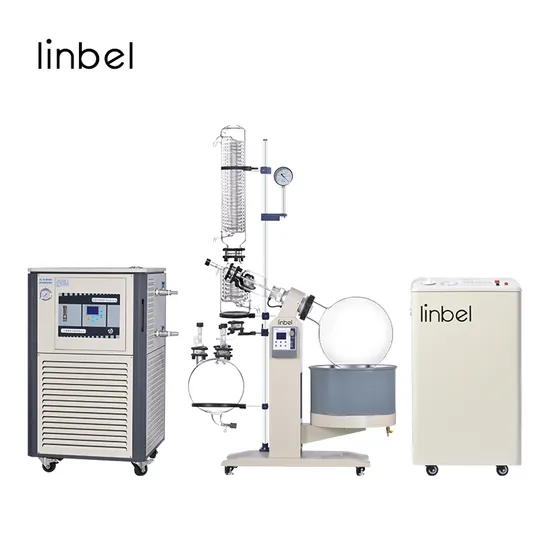

50L Rotary Evaporator with Vertical Condenser Best Vacuum Rotary Evaporator
| US$3,400.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
R1050
Application
Industry, School, Hospital, Lab
Customized
Customized
Certification
CE
Structure
Desktop
Material
Stainless Steel
Type
Water Bath Heating
Name
Rotary Evaporator with Vertical Condenser
Motor Rotating Speed
10-115
Capacity
50L
Collection Flask
20L
Life Type
Automatic
Bath Material
Stainless Steel
Bath Size(mm)
550*320
Lift Distance(mm)
0-180
Condenser
Vertical Condenser
Sealing
PTFE
Transport Package
Wooden Box
Specification
1320*770*2340mm
Trademark
Linbel
Origin
Shanghai
Production Capacity
1000set/Month
Product Description
| Model | R1050 |
| Temperature control(ºC) | RT~99 |
| Control screen | LCD |
| Heating power(W) | 6000 |
| Power(W) | 6300 |
| Pressure rate | ≤2kPa/h |
| Maximum vacuum(Pa) | 399.9(≤3mmHg) |
| Rotary motor power(W) | 250W brushless motor |
| Host speed | Digital DC stepless speed regulation |
| Motor rotating control(rpm) | 0~120 |
| Condenser | Vertical, main cold + sub cold, high efficiency three-return condenser |
| Condensation area(m2) | Main cold:1.04 |
| Deputy cold:0.22 | |
| Rotary flask | 50L,Flangetype Ø125mm |
| Collection flask(L) | 20 |
| Bath material | Stainless steel, SUS304 material |
| Bath size(mm) | Ø550mm×320mm |
| Temperature accuracy(ºC) | ±1.5 |
| Lifting mode | Electric lifting |
| Lifting distance | 0~180 |
| Lifting speed | 10mm/s |
| Bath power(W) | 4000 |
| Vacuum seal | Teflon + Teflon fluorinated rubber double seal |
| Discharge valve (spool) | PTFE |
| Evaporation speed(L/h) | Water:9 |
| Ethanol:24.5 | |
| Protection | Over current protection, ground fault protection, over temperature protection and dry burning protection |
| Optimum ambient temperature(ºC) | 5~35 |
| Ambient relative humidity(%) | ≤65 |
| Power | Three phase 220V/380V,50Hz/60Hz |
| Product size(mm) | 1320W×710D×2340H |
| Product weight(kg) | 115 |
| Packing size(mm) | 1350W×660D×1380H |
| Gross weight(kg) | 180 |
FAQ:
Q1. What is your products range?
• Industry water chiller, recirculating cooling chiller, rotary evaporator, alcohol recovery equipment, short path distillation kit, glass molecular distillation equipment, falling film evaporator, jacketed glass reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have our own factory.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
