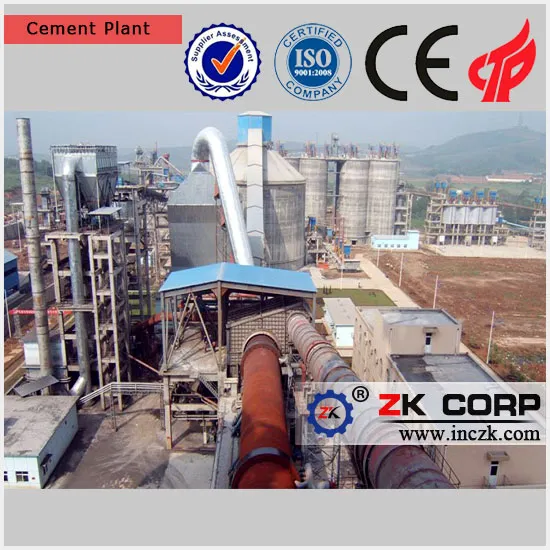

100-2000tpd Small Scale Cement Plant

100-2000tpd Small Scale Cement Plant

US$12,000.00-280,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Various Model
Customized
Customized
Automatic Grade
Automatic
Capacity
150-500tpd
Model
Verious
Certificate
ISO9001, ISO14000, CE
Experiences
More Than 50 Years
Related Machine
Rotary Kiln, Crusher, Ball Mill
Warranty
2 Years
After Sale Service
for The Whole Using Life
Design
by Our Professional Engineer
Installation
Under Our Engineer′s Guide
Type
Cement Equipment
Transport Package
Packaging in Standard Containers
Specification
ISO9001, ISO14000, CE
Trademark
ZK
Origin
Zhengzhou, China Mainland
Production Capacity
50 Set/Sets Per Year

Product Description

100-2000tpd Small Scale Cement Plant
Main characteristics of Small Turnkey Cement Plant Manufacturer:
1. Small Turnkey Cement Plant adopts advanced technology and equipment of current cement industry. With the advanced technology and dependable equipment, great economy benefits can be acquired.
2. The high-efficiency low-resistance five-stage cyclone pre-heater and cdc furnace system with high gas adaptability, high classification efficiency, high heat exchanging efficiency and low system resistance will be adopted at the kiln inlet, so as to increase the output of clinker.
3. New technology will be adopted at the rotary kiln head.
4. In the raw meal grinding section, air swept drying mill is adopted. The raw material is dried by waste heat from the kiln inlet to save energy and investment.
5.According to technology requirements of the new dry process rotary kiln, advanced computerized
dcs control system is adopted for the control of main production parts from bottom of raw material blending silos to top of cement silos. And PLC control system is adopted for other parts.
6.Great importance has been attached to the environment protection in the plan. In order to measure up to the environment protection standard, advanced and practicable dust collectors are adopted at all dust generating points.

Brief introduction of Small Turnkey Cement Plant:
1) Limestone crushing
2) Raw material storage and blending
3) Raw meal grinding
4) Raw meal homogenizing and kiln feeding
5) Kiln inlet, kiln middle, kiln head and pulverized coal preparation
6) Waste gas treatment at kiln inlet
7) Clinker and admixture storage
8) Cement grinding
9) Cement storage and packing

Cement Production Line Configuration Dry process cement production line (25-200t/d)Configuration
Capcity
25t/d
50 t/d
100 t/d
150 t/d
200 t/d
Rotary kiln
Specification
Φ1.4×33m
Φ1.6/1.9×36m
Φ2.2×45m
Φ2.5×50m
Φ3×60m
Capacity
1t/h
2t/h
4t/h
6t/h
8t/h
Calcination
Temperature
(ºC)
1450
1450
1450
1450
1450
Raw mill
Specification
Φ1.2×4.5m
Open circuit
Φ1.5×5.7m
Open circuit
Φ1.83×6.1m Open circuit
Φ1.83×6.1m
Closed circuit
Φ2.2×6.5m
Closed circuit
Capacity
1.7t/h
4.5t/h
9t/h
12t/h
16t/h
Motor power
55kW
130kW
210kW
210kW
310kW
Cement mill
Specification
Φ1.2×4.5m Open circuit
Φ1.5×5.7m
Open circuit
Φ1.83×6.1m Open circuit
Φ1.83×6.1m
Closed circuit
Φ2.2×6.5m
Closed circuit
Capacity
1.4t/h
3.5t/h
6.5t/h
8t/h
12t/h

Motor power
55kW
130kW
210kW
210kW
310kW


New dry process cement production line (300-1500t/d) configuration
Capacity
300t/d
700 t/d
1000 t/d
1500 t/d
Pre-heater
C1
2-Φ2500
Φ3500
Φ4800
2-Φ4000
C2
Φ3600
Φ4800
Φ4800
Φ5800
C3
Φ3600
2-Φ3700
Φ5200
Φ5800
C4
Φ3600
Φ4800
Φ5200
Φ6200
C5
Φ3600
Φ4800
Φ5200
Φ6200
Pre-calciner
Specification
Φ2200
Φ2800
Φ4800
Φ5200
Rotary kiln
Specification
Φ2.8×44m
Φ3×48m
Φ3.2×50m
Φ3.5×54m
Capacity
12.5t/h
30t/h
42t/h
63t/h
Calcination temperature (ºC)
1450
1450
1450
1450
Raw mill
Specification
Vertical roller mill
Φ1700
Dry mill
Φ3.2×7+1.8m
Dry mill
Φ3.5×10m
HRM2800
Vertical roller mill
Capacity
30t/h
50t/h
85t/h
130~160t/h
Motor power
400kW
1000kW
1250kW
1250kW
Cement mill
Specification
Φ2.4×13m
Open circuit
Φ3×11m
Closed circuit
Φ3.2×11m
Closed circuit
Φ4.2×13.5m
Closed circuit
Capacity
22t/h
42t/h
64t/h
95t/h
Motor power
800kW
1250kW
1400kW
3550kW
