Plastic Household Product Spoon Cup Basin Making Injection Molding Machine

Plastic Household Product Spoon Cup Basin Making Injection Molding Machine

US$8,500.00-10,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-70T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
110/102/98cm³/Sec
Weight
2500kg
Motor Power
14kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
3.6*1.2*1.7m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Plastic Household Product Spoon Cup Basin Making Injection Molding Machine
Product Parameters

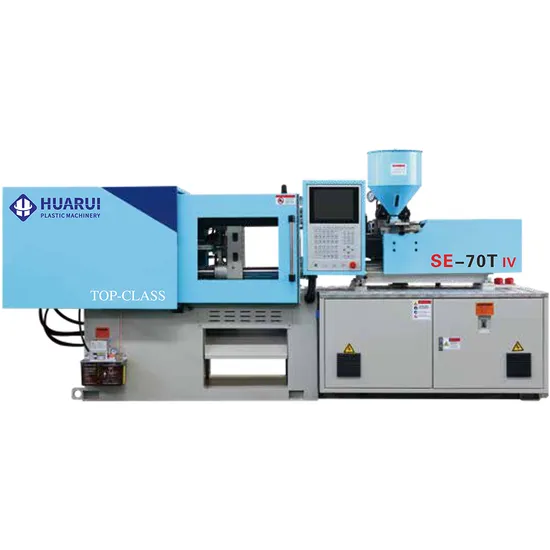

SE-70T IV Plastic Injection Molding Machine Information
Item Unit A B C
Screw diameter mm 32 34 36
Theoretical shot volume cm³ 113 192 235
Shot weight (PS) g 112 127 142
Shot weight (PS) oz 3.95 4.47 5
Length/Diameter ratio L/D 22.2 20.9 19.7
Injection pressure Bar 2150 2025 1890
Injection rate cm³/sec 110 102 98
Max.screw speed rpm 200
Clamping force KN 700
Max.daylight mm 470*470
Open stroke mm 300
Space Between Tie-bars mm 330*330
Min mould dimension mm 130
Mould thickness range mm 360
Ejector force KN 31
Ejector stroke mm 80
No.of ejector pins unit 5
Max.motor power KW 14
System pressure MPa 175
Heater input power KW 8.6
Oil filling capacity L 100
Machine size M 3.6*1.2*1.7
Net weight KG 2500

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
