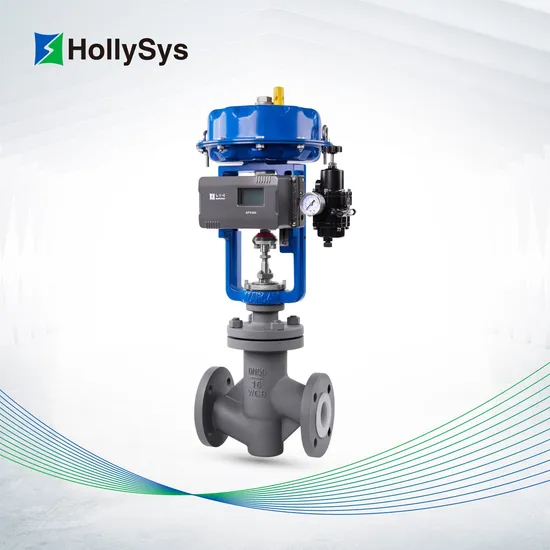

Hollysys Single Seat/Sleeve Single Seat/Cage/Fluorine Lined Globe Control Valve

Product Description

Application
· Complying with GB, ANSI and other standards
· Control valves for process industry and equipment requiring high control accuracy and small leakage, and the applications of high pressure difference and flashing cavitation
· It is widely adopted in the automatic control system of highly toxic, highly corrosive, radioactive and rare precious media in the industries of chemical, petroleum, metallurgy, medicine, electric power, etc.
Features
· Multi-spring pneumatic diaphragm actuator available for selection, simple and firm structure, large output force and long service life
· Various valve body materials for selection, such as cast steel, cast stainless steel, low-temperature and high-alloy steel or special materials
· Suitable for various fluids with different pressures and temperatures. S-shaped streamlined channel of valve body, enabling small pressure drop loss, wide adjustable range, high accuracy of flow characteristics, large guide area of valve trim and good vibration resistance
· Optional bellows seal structure adopted for the upper bonnet, eliminating the possibility of medium leakage from the valve stem movement clearance
· For sleeve type, pressure balance structure of valve trim, using small actuator thrust to control the high pressure difference, and a sealing ring between the valve trim and the sleeve to reduce leakage
· For fluorine lined type, tetrafluoroethylene-hexafluoropropylene copolymer (F46), a corrosion-resistant and aging-resistant material, lining at the valve body inner cavity, valve trim, valve stem and other parts in contact with the medium, double seal with PTFE bellows and packing to ensure no leakage
Technical Specifications
A100-P Single Seat Control Valve

Product model	A101-P1	Bonnet type		Room temperature			Operating temperature (°C)		-17 to 230
	A103-P1			Elongation type I					230 to 570
	A105-P1			Elongation type I					-45 to -17
				Elongation type II					-100 to -45
Nominal	DIN	15 to 300
Diameter	NPS	1/2" to 12"
Nominal pressure		PN16 to PN63
Pressure grade ASME		CL150, CL300
Connection	Flange type	FF, RF, RJ, FM concave etc.
Type	Welded type	SW, BW
Characteristics		Linear/equal percentage/quick opening
CV value	High accuracy	0.1	0.16	0.25	0.4	0.63	1	1.6	2.5	4
		6.3	10	14	17	24	44	68	99	175
		275	360	640	1000	1400
	High capacity	0.25	0.4	0.63	1	1.6	2.5	4	6.3	10
		14	30	50	85	125	200	420	700
	Quick	10	14	35	55	95	135	220	460	720
	Opening
Packing		PTFE V-shaped packing, filled PTFE V-shaped packing, flexible graphite packing
Leakage quantity		The metal valve seat conforms to Class IV of ANSI/FCI 70-2 or Class IV of GB/T4213-2008. If you need valve seats that conform to Class V and Class VI, please contact us for customization; Soft valve seat≤rated Cv value×10-7. The quick-opening valve trim conforms to Class V and VI of ANSI/FCI70-2orGB/T4213-2008

A100-LP Sleeve Single Seat Control Valve

Product model	A101-LP1	Bonnet type		Room temperature		Operating temperature (°C)		-17 to 230
	A103-LP1			Elongation type I				230 to 570
	A105-LP1			Elongation type I				-45 to -17
				Elongation type II				-100 to -45
Nominal	DIN	15 to 200
Diameter	NPS	1/2" to 8"
Nominal pressure		PN16 to PN63
Pressure grade ASME		CL150,CL300
Connection	Flange type	FF, RF, RJ, FM concave etc.
Type	Welded type	SW, BW
Characteristics		Linear/equal percentage/quick opening
Cv value	Linear	0.01	0.04	0.1	0.16	0.25	0.4	0.63	1
		1.6	2.5	4	6.3	12	21	30	50
		85	125	200	310
	Equal	0.25	0.4	0.63	1	1.6	2.5	4	6.3
	Percentage	12	21	30	50	85	125	200	310
Packing		PTFE V-shaped packing, filled PTFE V-shaped packing, flexible graphite packing
Leakage quantity		The metal valve seat conforms to Class IV of ANSI/FCI70-2 or Class IV of GB/T4213-2008. If you need valve seats that conform to Class V and Class VI, please contact us for customization; Soft valve seat ≤ rated Cv value×10-7.The quick-opening valve trim conforms to Class V and VI of ANSI/FCI70-2orGB/T4213-2008

A100-DL Low Leakage Cage Type Control Valve

Product model	A107-DL1	Bonnet type		Room temperature		Operating temperature (ºC)		-17 to 230
	A108-DL1			Elongation type l				230 to 538
	A105-DL1			Elongation type l				-45 to -17
				Elongation type ll				-100 to -45
Nominal diameter	DIN	40 to 400
	NPS	1-1/2" to 16"
Nominal pressure		PN16 to PN63
Pressure grade ASME		CL150, CL300
Connection type	Flange type	FF, RF, RJ, FM concave etc.
	Welded type	SW, BW
Characteristics		Linear/equal percentage/quick opening
CV value		11	17	24	36	40	44	60	68
		75	99	100	110	140	150	175	220
		240	275	360	395	420	435	640	650
		820	850	1000	1440	1600	1800	1900	2000
		2250	2450	3870	3935	4520	5152
Packing		PTFE V-shaped packing, filled PTFE V-shaped packing, flexible graphite packing
Leakage quantity		The metal valve seat conforms to Class IV of ANSI/FCI70-2 or Class IV of GB/T4213-2008. If you need valve seats that conform to Class V and Class Vl, please contact us for customization; Soft valve seat ≤ rated Cv value×10-7. The quick-opening valve trim conforms to Classes V and Vl of ANSI/FCl 70-2 or GB/T4213-2008

A104-P Bellows Seal Single-Seat Control Valve

Product model	A104-P1	Bonnet type		Room temperature			Operating temperature (°C)		-17 to +230
				Low temperature					-45 to -17
				High temperature					+230 to +350
Nominal	DIN	15 to 300
diameter	NPS	1/2" to 12"
Nominal pressure		PN16 to PN63
Pressure grade ASME		CL150, CL300
Connection	Flange type	FF, RF, RJ, FM concave etc.
type	Welded type	SW, BW
Characteristics		Linear/equal percentage/quick opening
CV value	High accuracy	0.01	0.04	0.1	0.16	0.25	0.4	0.63	1	1.6
		2.5	4	6.3	10	14	17	24	68	99
		175	275	360	395	640	1000	1400
	High capacity	0.25	0.4	0.63	1	1.6	2.5	4	6.3	10
		14	30	50	85	125	200	420	700
	Quick opening	10	14	35	55	95	135	220	460	720
Packing		PTFE V-shaped packing,filled PTFE V-shaped packing, flexible graphite packing
Leakage quantity		The metal valve seat conforms to Class IV of ANSI/FCI70-2orClassIVofGB/T4213-2008. If you need valve seats that conform to Class V and Class VI,please contact us for customization;soft valve seat≤rated Cv value×10-7. The quick-opening valve trim conforms to Classes V and VI of ANSI/ FCI70-2orGB/T4213-2008

A104-DL Low Leakage Bellows Seal Cage Type Control Valve

Product model	A104-DL1		Bonnet type		Room temperature		Operating temperature°C	-17 to +230
					Low temperature			-45 to -17
					High temperature			+230 to +350
Nominal	DIN		40 to 300
Diameter	NPS		1-1/2" to 12"
Nominal pressure			PN16 to PN63
Pressure grade ASME			CL150, CL300
Connection type	Flange type		FF, RF, RJ, FM concave etc.
	Welded type		SW, BW
Characteristics			Linear/equal percentage/quick opening
CV value	High capacity	Equal percentage	36	60	100	140	220	420	820
		Linear	40	75	110	150	240	435	850
	High accuracy		11	17	24	44	68	99	175
			275	360	395	640	650	1000	1440
Packing			PTFE V-shaped packing, filled PTFE V-shaped packing, flexible graphite packing
Leakage quantity			The metal valve seat conforms to Class IV of ANSI/FCI70-2orClassIVofGB/T4213-2008. If you need valve seats that conform to Class V and Class VI,please contact us for customization; soft valve seat≤rated Cv value×10-7. The quick-opening valve element conforms to Class V and VI of ANSI/FCI70-2orGB/T4213-2008

A100-F Fluorine Lined Single Seat Control Valve

Product Model	A101-P1-F		Bonnet type		Room temperature	Operating temperature (°C)		-20 to 150
	A104-P1-F				Bellows seal
Nominal	DN		20 to 200
Diameter	NPS		NPS3/4" to 8"
Nominal pressure			PN16
Pressure grade ASME			CL150
Connection	Flange type		FF, RF, FM concave etc.
Type
Characteristics			Linear/equal percentage
CV value	Linear	DN20	1.4	2.3	3.7	5.8	9	14	23
		to 200	37	58	82	117	280	526
	Equal	DN20	1.4	2.3	3.7	5.8	9	14	23
	Percentage	to 200	37	58	82	117	280	526
Packing			PTFE bellows + PTFE V-shaped packing
Leakage quantity			Conforming to ClassV I of ANSIB16.104

Product Images & Drawings
A100-P Single Seat Control Valve

DN	A	H	H1	B	E	Weight (Kg)
15	184	483	643	270	42	23
20	184	483	643		42	24
25	184	483	643		42	25
32	222	565	721		71	32
40	222	565	721		71	32
50	254	565	721		82	38
65	276	817	1086	400	92	69
80	298	818	1087		104	79
100	352	829	1098		122	89
125	403	888	1157		145	135
150	451	900	1154		178	170
200	543	970	1239		243	245

A100-LP Sleeve Single Seat Control Valve

DN	A	H	H1	B		Weight (Kg)
15	184	483	643	270	42	23
20	184	483	643		42	24
25	184	483	643		42	25
32	222	565	721		71	32
40	222	565	721		71	32
50	254	565	721		82	38
65	276	817	1086	400	92	69
80	298	818	1087		104	79
100	352	829	1098		122	89
125	403	888	1157		145	135
150	451	900	1154		178	170
200	543	970	1239		243	245

A100-DL Low Leakage Cage Type Control Valve

DN	A	H	H1	B	E	Weight (Kg)
50	254	565	721	270	82	48
65	276	817	1086	400	92	91
80	298	818	1087		104	111
100	352	829	1098		122	139
125	403	888	1157		145	205
150	451	900	1154		178	250
200	543	970	1239		243	415

A100-F Fluorine Lined Single Seat Control Valve

DN	A	H	B	E	Weight (Kg)
20	180	483	270	47.5	24
25	185	483		52.5	25
32	200	565		65	32
40	220	565		70	35
50	250	565		77.5	41
65	276	817	400	87.5	75
80	298	818		95	85
100	354	829		105	100
125	402	888		120	135
150	480	900		137.5	175
