US$10.00-45.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
LTE1615-3/4/6/8
Housing Material
Polycarbonate
Certification
CE, ECE R65 & SAE J845 & R10 Amber
Colour
White,Red,Blue,Amble,Custom
Specification
Multiple Size
Production Capacity
6505 Pieces/Month
Product Description

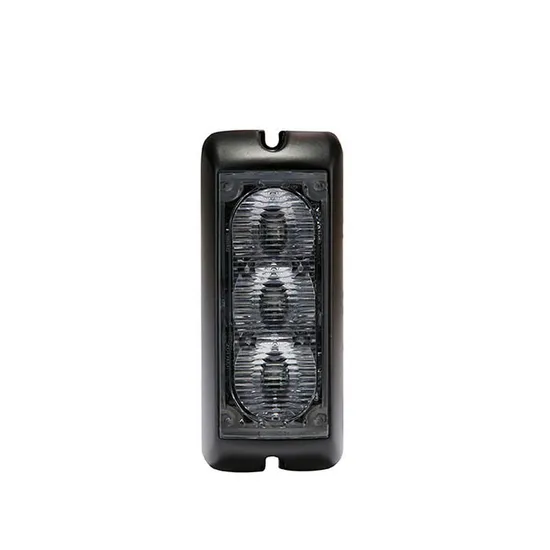

LED Warning Light LTE1615-3/4/6/8
Features
·High power Gen III led as light source.
·Unique appearance,compact structure and convenient operation.
·With low profile for flexible mounting to meet different applications.
·New structure that have air hole on the inside lens to avoid deformation caused by internal air expansion.
·Several synchronous flash pattern and several asynchronous flash pattern available; It can be customized according to your requirements.
·Black and chrome aluminum housings available.
·Compliant to ECE R65 regulation.
Product
Technical Parameters
Model | LTE1615-3 | LTE1615-4 | LTE1615-6 | LTE1615-8 |
Working voltage | DC10-30V | DC10V-30V | DC10V-30V | DC10V-30V |
Working current | Less than 0.8A | Less than 0.8A | 1A | 1A |
Mounting | Bolt | Bolt | Bolt | Bolt |
Flash patterns | 13 synchronous and 13 asynchronous | 13 synchronous and 13 asynchronous | / | / |
Dimension | 115*45*26mm | 115*45*26mm | / | 115*75*27.5mm |
Light source | 3pcs 3W LEDs | 4pcs 3W LED | 6pcs 3W LED | 8pcs 3W LED |
