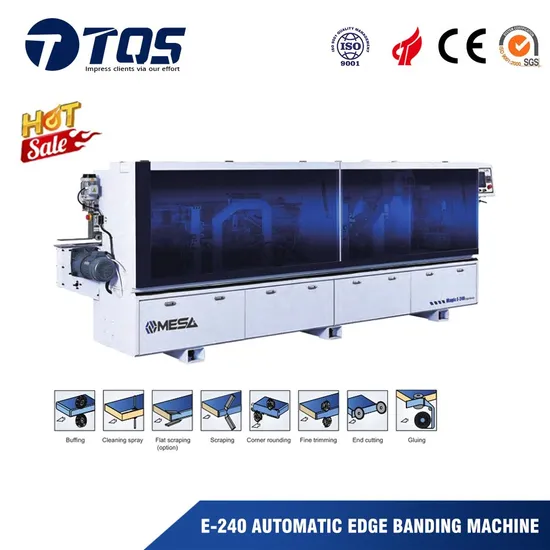

Hot Sale Edge Bander E-240 Automatic Edge Banding Machine

Product Description

E-240 Automatic Edge Banding machine
Lower glue pot→ Tape pressing with 3 rollers→ End cutting→ Fine Trimming →Corner rounding →Scraping → Cleaning spray → Buffing

Machine Body Machine body has been solid welded by the laser cutting steel, and did the heat treatment, to ensure the structure stability. Main beam adopts Aluminum profile structure with electrical elevating, which is uniform and rigid.

Control Panel Adopts 7 inch touch screen, which integrated the following functions: Function control Beam elevating Parameter setting Temperature controller Alarm details

Glue Pot Structure The machine underneath glue pot, adopts screw type extracting structure. The amount of adhesive is adjusted via pneumatic cylinder. Come with 3 pcs tape pressing rollers, two steel one and one rubber one.

End Cutting Unit Two pieces 0.37kw high speed motor with 200Hz frequency and 12000rpm rotation speed The motor come with manual rotating device, which can adjust the angle easily. Saw blades size:104*2.6*22*24Z

Fine Trimming Unit Two pieces 0.75kw high speed motor with 200Hz frequency and 12000rpm rotation speed Motor angle is adjustable With individual dust exhausting hoods

Corner Rounding Unit Two pieces 0.3kw high speed motor with 200Hz frequency and 12000rpm rotation speed. Adopts flat linkage mechanism Can adjust the corner round mode on the touch screen according to the working requirement.

Scraping Unit Scraping cutter with R2 radius With the air blower device

Flat scraping and spray device Equip with the patent flat scraping unit, which can remove the extra adhesive line on the board surface. With the special cleaning agent spray device, which can help the buffing unit to clean the leaking adhesive on the board surface.

Buffing Unit Considering the dual-glue pots structure, the machine comes with double buffing unit, to meet the different color polishing. Can do the board edge polishing, and remove the leaking adhesive mark on the surface.

Low-voltage apparatus Input power: 3~380v,50hz Circuit brake, 24V power supplier and AC contactor are from Schneider France. Delta PLC is from Taiwan.Brand parts will ensure the safety and stability of the control system.

Automatic Lubrication Pump Which will do the automatic lubrication to the linear guide way on the end cutting unit, to extend the using life of the structure.

Options

The latest appearance design of the edge bander. Also can do the OEM for your side.

10inch Touch Screen Adopts 10 inch touch screen, which integrated the following functions: Function control Parameter setting Temperature controller Alarm details

Vertical glue pot The machine adopts vertical glue pot, which can process the adhesive like EVA and PUR. The glue pot come with two pieces individual glue buckets. With quick changing design, to enhance the working efficiency.

1. What's your guarantee? Which type of after-sale service can you provide to us? For all the machines, we can offer a 1-year guarantee to our customers; for any parts damaged due to the quality issue, we will send the parts via DHL, FedEx, or air shipment urgently. After-sale service: if you purchased our CNC nesting center or edge bander, and we don't have any dealer or agent in your region, we will send our engineer to your site for installation and training ( you should pay the round-trip flight ticket, salary of engineer- each day 100.00USD, also take charge of the local accommodation. ). Considering the situation, we can do the online training. Also any small issues, you can knock us online, we will offer rapid action to your concerns. 2. Which type of payment term can you accept? How could we keep our capital safe? We can accept the T/T and L/C at sight. We have more than 10 years of exporting experience, so we know more about the capital safety concern of our customers. We will offer the video call or pictures to your side, during our loading, then you can check what we have done for the loading, if any cheating, then you can control your payment (T/T or L/C). 3. What is the leading time, if we did the payment to your side? The leading time of most common machines will be 10-25 days after collecting the down payment/copy of L/C. Specially designed production will take a little bit longer time. 4. Can you accept some O.E. M service to us? or any other service could you do for us? We have more than 15 years experience in the woodworking machinery industry, also have more than 5 experienced engineers, so we can do the special design according to your requirement. Also, our exporting team has more than 10 years of experience in this field, so they can help you to purchase relevant products, parts, or tools, which can save your time and your cost.
