2025 Bcmc CNC Stone Engraving Machine Automatically Granite Carving Machine with Rotary Axis Types of CNC Router for Stone Tombstone Kerbstone Carving Machine
| US$20,000.00-22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BCSD-1530M
Function
Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering, 3D Engraving
Application Material
Granite
Automation
Automatic
Control
CNC
Motor Power
High Power
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO
Current
AC
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry, Welding, Forging, Engraving
Customized
Customized
Control Mode
Point to Point Control
Drive Mode
Electric
Condition
New
Repeated Positioning Precision
+-0.02
Transport Package
Plastic Packing
Specification
150*300*35cm
Trademark
BCMC
Origin
Putian, Fujian, China
HS Code
8479909090
Production Capacity
50 Pieces/Month
Product Description
Product Description

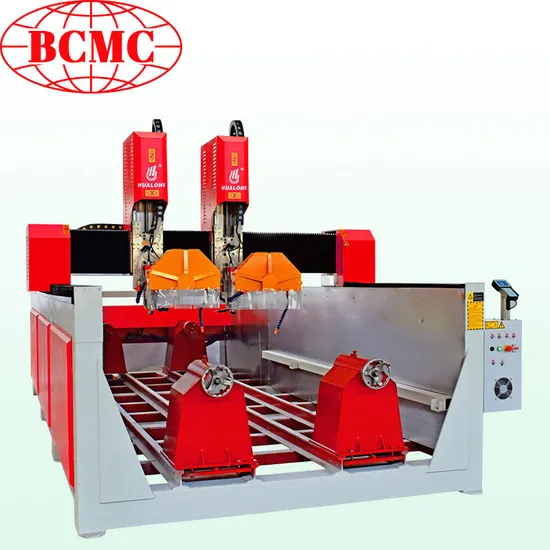

BCMC Machinery BCSD-1530M-2 is a kind of multifunctional 4 axes CNC manufacturing machine for tube column and flat stone engraving. Frequently used in stone processing and home decoration industry for stone processing. Able for granite, ceramic, natural granite profilling and processing. Equipped with saw blade and drill head for different kind of processing requirement.
Main Features: Highly precision. Good final product shape and effect. Processing with two columns in one time. Efficiency and powerful G code supported. Easy control. Versatile function, 2D & 3D engraving, drilling, lettering, profile cutting function supported. Break to rusume function. Continue carving from break point after power resuming from failure. Compatible with Artcam JD Paint CAM software and other software programs. Good heat, shock and bad environment resistance. Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
Technical Parameter
| Model No. | BCSD-1525M-2 | BCSD-1530M-2 | BCSD-1535M-2 |
| Relief working size | 150*250*35cm | 150*300*35cm | 150*350*35cm |
| Max. processable cylinder size | 2500mm*ø600mm | 3000mm*ø600mm | 3500mm*ø600mm |
| Number of working head | 2 pcs | 2 pcs | 2 pcs |
| Gantry | Thickened aging steel gantry | Thickened aging steel gantry | Thickened aging steel gantry |
| Feeding height | ≤ 400 mm(customizable) | ≤ 400 mm(customizable) | ≤ 400 mm(customizable) |
| Spindle power | 3.7 /4.5 / 5.5 kw (customizable) | 3.7 /4.5 / 5.5 kw (customizable) | 3.7 /4.5 / 5.5 kw (customizable) |
| Spindle rotating speed | 6000-24000 rpm/min | 6000-24000 rpm/min | 6000-24000 rpm/min |
| Relief working | 30000 mm/min | 30000 mm/min | 30000 mm/min |
| Diameter of engraving tool | ø1-16 mm | ø1-16 mm | ø1-16 mm |
| Positioning precision | +/- 0.03 mm | +/- 0.03 mm | +/- 0.03 mm |
| Repeat positioning accuracy | +/- 0.02 mm | +/- 0.02 mm | +/- 0.02 mm |
| Command code | G code | G code | G code |
| Driving system | Step / Hybrid servo / Servo (customiable) | Step / Hybrid servo / Servo (customiable) | Step / Hybrid servo / Servo (customiable) |
| Cooling system | Water cooling | Water cooling | Water cooling |
| Dimensions (L x W x H) | 230x460x220cm | 230x510x220cm | 230x560x220cm |
Detailed Information For Spare Parts: Control system: Support control system customization. NC studio / shanlong / RichAuto DSP control system choosable. Cooling system Assemble with water cooling system for machine cooling. Protect the machine being working in a much too hot environment. Application: * Bas-reliefs * Line engraving Cutting, Edge inversing * Funeral tablets/gravestones, Milestones * commemorative plates
* Furniture, Fireplace. * Countertops, Sink hole, grooving, shower trays * 3D engraving, Roman column, column cap & base
