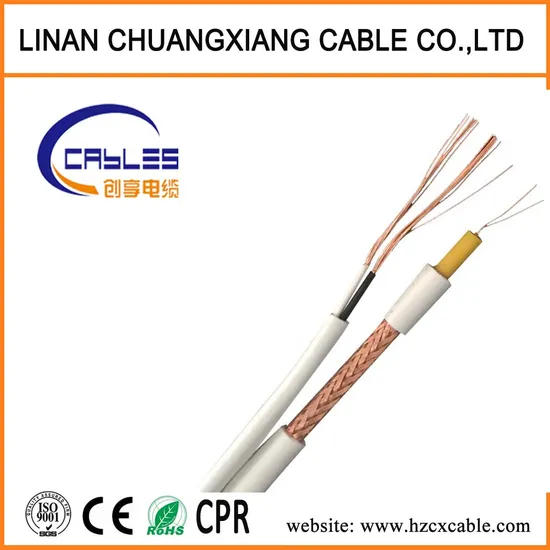

Statellite Cable RG6 Bulk Cable Wire RG6 Coaxial Cable CATV CCTV Cable TV Cable Rg58 /Rg 59 /Rg59 with Power White RG6 Rg-6 2c Coaxial Cable Reel
| Negotiable | 30,000 Meters (MOQ) |
Basic Info.
Model NO.
RG6
Type
Coaxial
Species
Coaxial Cable
Connector
HDMI
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
RoHS, CE, ISO9001, CCC
Brand
Cx-Cable
Conductor
Bc/CCS
Insulation
Foam PE/Solid PE
First Shield
Al Foil
Second Shield
Al Alloy Braiding
Jacket
PVC/PE
Jacket Color
According to Customers
Test Report
Provided
Power Cable
Bc/CCA/Tc
Transport Package
305m/Wooden Reel
Specification
CE/SGS/ROHS/ISO
Trademark
OEM or CX-Cable
Origin
Hangzhou Zhejiang
HS Code
8544200000
Production Capacity
20000boxes/Per Month
Product Description
Product Description| Structure | Material | RG6 DUAL | RG6 TRI | RG6 QUAD |
| Conductor | BC/CCS | 1.02mm(18AWG,0.04'') | ||
| Dielectric | FPE | 4.57mm(0.18'') | ||
| 1st Shield | Al Foil | 100%, Overlap>2mm | ||
| 2nd Shield | BC or Al Braiding | 30%-95% | 60% | |
| 3rd Shield | Al Foil | - | 100%, Overlap>2mm | |
| 4th Shield | BC or Al Braiding | - | - | 40% |
| Jacket PVC/PE | Outer Diameter | 6.91mm(0.272'') | 7.02mm(0.276'') | 7.62mm(0.30'') |
| Nominal Thickness | 0.76mm(0.030'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |
| Messenger | Steel | 1.30mm or 1.83mm | ||
| Dielectric Adhesion | >20N/5cm | |
| Breaking Strength of Messenger | 1.30mm 82kgf;1.83mm 166kgf | |
| Impendence | 75±3 Ohm | |
| Capacitance | 50±3.0 nf/KM | |
| Return Loss (100% swept) | 1~470MHz | ≥22dB |
| 470~1000MHz | ≥20dB | |
| 1000~2200MHz | ≥18dB | |
