150lm/W, IP65, Meanwell Driver, Driver 200W Campanas Industriales LED

Product Description

240W 200W 150W 100W LED High Bay Light
Industrial UFO Highbay Lighting Lamp IP65 Waterproof 150lm/W

Product Description
1. Original EPISTAR LED ,SMD2835 Up to150lm/W
2. Meanwell driver, 5 years warranty
3. Power: 100w/150w/200w/240W
4. Equiv. to: 250W/250W-400W/400W-500W/600W/700W/1000W
5. Various beam angles optional: 60°/90°/120°/150°
6. Function: Zigbee dimmable, DALI dimmable, motion sensor, daylight sensor optional
7. Materials: Die cast Aluminum / Tempered glass (PC lens optional)
8. Installation method: Loop & Hook hanging / Wall mount / Surface mount / Rack mount
9. Angle for flexible bracket : 30°, 60°, 90°, 120°, 150°, 180°
10. Ideal mounting height: 8-15 m
11. Certification: SAA ,C-Tick,CE, Rohs ,TUV
Specifications:

Item Number	HB100W/D	HB150W/D	HB200W/D	HB240W/D
Fixture Luminous Flux	>15,600lm	>22,500lm	>30,000lm	>36,000lm
fixture Efficiency	>150lm/W
LED chips	Nichia SMD3030 / PHILIP 3030
CRI	>83
Color temp	3000k, 4000k, 500k, 6000k
Beam Angle	45°/60°/90°/120°
IP rating	IP65
Power Supply	Meanwell / SOSEN/ MOSO
Input voltage	Ac100-277v /47-63Hz
PF	≥0.95
Materials	Die cast Aluminum /Tempered glass (PC lens optional)
Install ation	Loop /wall mount /Surface mount
Equivalent	250w-400w	400w-500w	600w	700w
Dimension	290*170mm	340*180mm	340*180mm	400*194mm
Package Size	44*26*44cm
N.W	2.2±0.3Kg	3.3±0.3Kg	3.3±0.3Kg	4.2±0.3Kg
G.W	2.4±0.3Kg	3.3±0.3Kg	3.8±0.3Kg	4.8±0.3Kg

Features
1. Meanwell driver + Nichia chips + Unique design / Private tooling heat sink
2. Unique design UFO shape, lighter and smaller, no reflector, saving much freight cost
3. Compact Design, no assembly, easy installation, saving local labour cost
4. Modular design, easily replace the driver
5. Wide aluminum plate design, heat dissipation fast and evenly
6. SMD LEDs are on Large diameter PCB, so the heating from each SMD can be conducted soon and fully,
which guaranteed a low lumen decay and long life
7. All stainless screws prevent bad situation

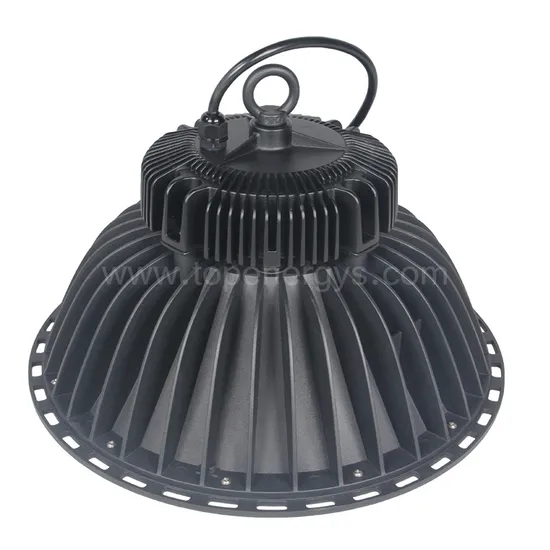

Pictures of 100W 150W industrial led high bay light
Products Comparison
Installation of Nichia LED High Bay Light
Hook installation steps:
1. Cut off power before operation.
2. Knowing the inside diameter of the luminaires then Choose suitable hook for the luminaires.
3. Fix the hook before installation and make the it can bear over 3 times weight of the lamp
4. Connect the lamp with hook and make it is safe.
5. Connect the power wire:Brown,"L",connect to LIVE; Blue, "N",connect to NEUTRAL; Lime-green,connect to EARTH/GROUND
6. Light up the luminaires!
Bracket installation steps:
1. Cut off power before installation.
2. Measure the hole size on the holder,choose suitable screw.
3. Fix the screw at the place where luminaires will be installed and it should can bear over 3 times the weight of the luminaires
4. Screw up the screws at both sides of holder, then connect the hold hole with screws, tighten it up.
5. Connect the power wire:Brown,"L",connect to LIVE; Blue, "N",connect to NEUTRAL; Lime-green,connect to EARTH/GROUND
6. Light up the luminaires !
Attention
Lamp must be vertical suspension and the supporter should can bear at least 3 times weight of the lamp.
Application
1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.
Packaging & Shipping
Packaging: carton for strong protection
Shipping : 3-5 for samples, 5-15 for all items, DHL UPS EMS others are available.
