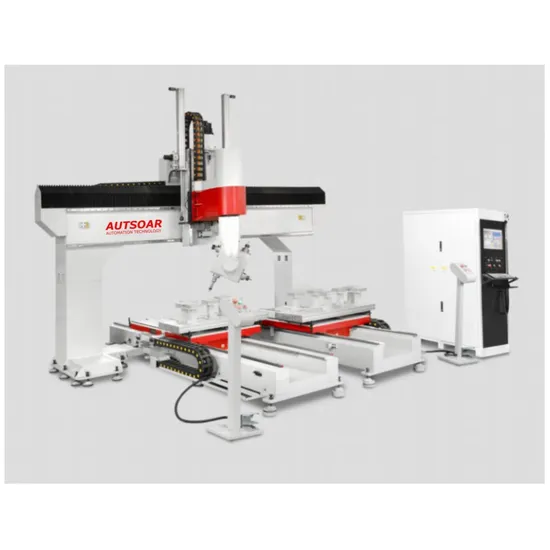

High Performance 5-Axis Wood Carving Machine for Sale

Product Description

Product Parameters

Travel range

1. Vacuum worktable size: 1200 * 1600mm; Quantity: 2Pcs 2. Sports itinerary: -X-axis travel: 3300mm -Distance between the two pillars of the machine: 3200mm -Y-axis travel: 2600mm -V-axis travel: 2600mm -Z-axis travel: 880mm

Working parameters

1. Maximum moving speed: -X-axis speed: 80m/min -Y-axis speed: 80m/min -Z-axis speed: 60m/min -C-axis (rotating head):+/-400 ° -A-axis (rotating head): continuous rotation 2. Install power input: approximately 58 kW 3. General working voltage: 380VX3P 4. Power supply: AC380V/50Hz 5. Compressed air pressure: 6bar 6. Machine net dimensions: length x width x height: 4600x3900x3800mm 7. Net dimensions of the electrical control box: length x width x height: 1420x700x2000mm 8. Total mechanical weight: approximately 7000kg

Applications: Wooden furniture industry, furniture decoration, musical instruments, wooden crafts, large panel carving, solid wood furniture, solid wood murals, composite doors, paint free doors, cabinet doors, advertising industry, mold industry, relief, toy production, bedside tables, screen sculptures, etc.
Product Description
Sample
Packaging & Shipping
Certifications
FAQ
1. Question: How to transport the machine?
Answer: We can send our machines by sea, land, and railway
2- Question: Is the quality guaranteed?
Answer: Each device is inspected to ensure quality before being shipped out, and after-sales service is provided in a timely manner
3-Can it be customized?
Answer: If you have special requirements, we can certainly customize the machine according to your requirements to meet your needs.
