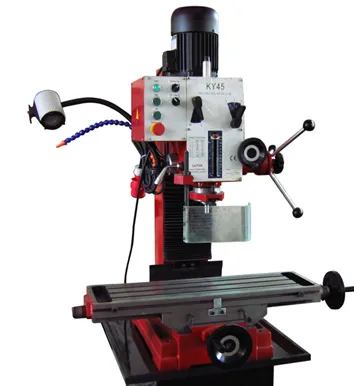

Mini Bench Vertical Manual Portable Multi Function Manual Drilling & Milling Machine (KY45FG/KY40FG/KY32FG)
| US$1,120.00-1,380.00 | 2 Sets (MOQ) |
Basic Info.
Model NO.
KY45FG/KY40FG/KY32FG
Precision
Precision
Certification
CE
Condition
New
Drilling Capacity
32mm/40mm/45mm
Max. Boring Diameter
50mm/60mm/70mm
Face Milling Capacity
63mm/80mm/80mm
End Milling Capacity
20mm/32mm/32mm
Spindle Travel
130mm
Spindle Taper
Mt4 or R8
Transport Package
Wooden Case
Specification
CE
Trademark
KY
Origin
China
HS Code
84592900
Product Description
| Specifications | |||||
| Mode | KY45FG | KY40FG | KY32FG | ||
| Drilling capacity | 32mm/40mm/45mm | ||||
| Max. Boring diameter | 50mm/60mm/70mm | ||||
| Face milling capacity | 63mm/80mm/80mm | ||||
| End milling capacity | 20mm/32mm/32mm | ||||
| Max. Distance from spindle nose to table | 450mm | ||||
| Min. Distance from spindle axis to column | 260mm | ||||
| Spindle travel | 130mm | ||||
| Spindle taper | MT4 or R8 | ||||
| Step of speed | 6 | ||||
| Range of spindle speed | 50HZ | 80-1250 rpm | |||
| 60HZ | 95-1500 rpm | ||||
| Step of automatic feeding of spindle | 6 | ||||
| Automatic feeding amount of spindle | 0. 06-0. 30mm/r | ||||
| Swivel angle of headstock perpendicular | ±90 | ||||
| Size of table | 800*240mm, 700*240mm | ||||
| Forward and backward travel of table | 175mm | ||||
| Left and right travel of table | 500mm 400mm | ||||
| Power | 0.75KW | 1.1KW | 1.5KW | ||
| Voltage/frequency | As customer's requirement | ||||
Warehouse to film
Packing & Delivery
