Construction Building Block Machine Plant Qtj4-18 Hollow Block Machine Youtube
| US$10,000.00-11,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QTJ4-18
Certification
CE, ISO
Customized
Customized
Automatic Grade
Automatic
Type
Hydraulic Shock
Method
Hydraulic Automatic
Color
as Requirement
Main Motor Power
11kw
Attached Mold
1set
Transport Package
Nude Packing
Specification
5000kg
Trademark
hongbaoyuan
Origin
China
HS Code
8474802000
Production Capacity
1000 Sets/Months
Product Description
Advantage:full automatic, hydraulic and output is big. the machine equip with PLC, easy to operate.the control box is very easy to operate. suitable make hollow solid block ,color pavement block,curbstone. material can be easy find all over the world . material:cement ,concrete ,sand ,flyash ,construction waste ,slag ,mountain flour.
Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
Main Parameter
| Model | QTJ4-18 | Power | 20.5kw |
| Weight | 5000kg | Overall size | 3700(L)*2100(W)*2700(H)mm |
| Forming cycle | 20-25S | Pallet size | 850/880*550*20mm |
| Vibrating force | 60KN | Down pressure | 4-7 ton |
Installation Information
| Area | 2600-3300 m2 | workshop | 80m2 |
| Raw Material Work Shop | 400m2 | Office | 50m2 |
| Staff And Workers | 5-6 person | Power Distribution | 40kw |
| Water Consumption | 5T per day | Pallets need | 1500pcs |
capacity:

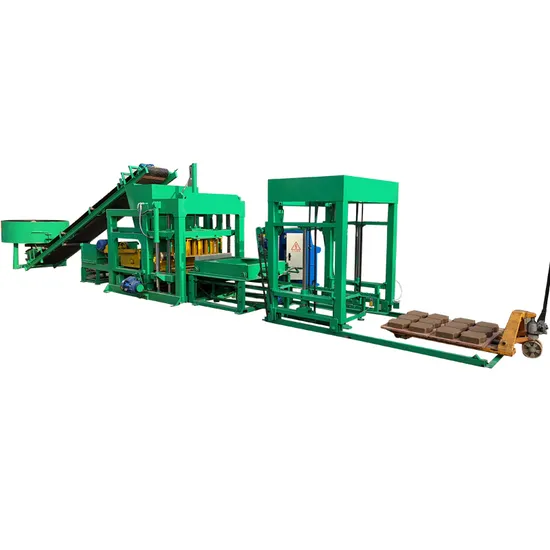

Machine display:
Block Sample:
Block Mold:
Company information:
