Mounted One Way Plow The Single-Way Disc Plough Matched with Four-Wheel Tractor Furrowing The Land
Basic Info.
Model NO.
1LYQ
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Tractor
Arbor Configuration
Disc Plate
Certification
ECE, EU, CE
Color
Blue
Warranty
3 Year Warranty
Transport Package
Iron Net Box
Specification
20/25
Trademark
LIANSHENG
Origin
Dezhou
HS Code
8432100000
Production Capacity
5000pieces/Year
Product Description

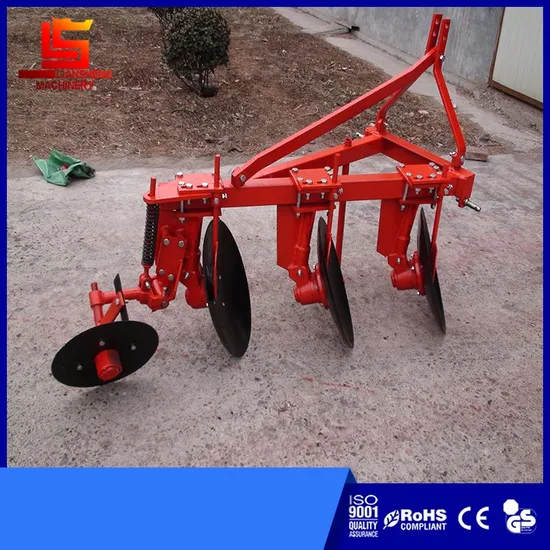

Mounted One Way Plow The Single-way Disc Plough Matched with Four-wheel Tractor Furrowing the landThe Single-way disc plough is matched with four-wheel tractor,the disc of plough are revolving to furrow the land during the operation.
The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc.
| Model | Unit | 1LYQ-220 | 1LYQ-315 | 1LYQ-320 | 1LY-325 | 1LY-425 | 1LY-525 | 1LY-625 |
| Width of cut | mm | 400 | 450 | 600 | 750 | 1000 | 1250 | 1500 |
| Depth of cut | mm | 200 | 250~300 | |||||
| Dia of disc | mm | 510 | 460 | 510 | 660 | |||
| Q'ty of disc | 2 | 3 | 3 | 3 | 4 | 5 | 6 | |
| Weight | kg | 140 | 160 | 190 | 420 | 490 | 565 | 640 |
| Matched power | hp | 18 | 25 | 25-40 | 50 | 90 | 120 | 160 |
| Linkage | Cat I | Cat II | ||||||
RFQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below:
