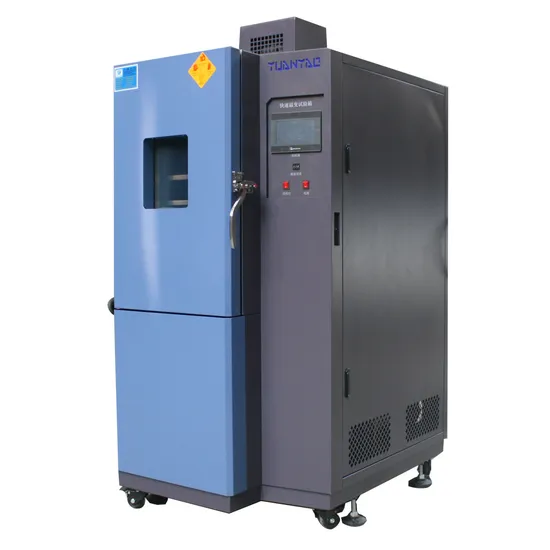

Linear/Nonlinear Rapid Rate Temperature Chamber Rapid Temperature Cycle
| US$9,800.00-80,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YICT-225
Certification
CE, ISO
Warranty
1 Year
Inner Chamber Size
600*750*500mm
Temp. Range
-60c~+150c
Temp. Rapid Change Range
-60c~+85c
Heating&Cooling Rate
20c/Min
Temp. Fluctuation
+/- 0.5c
Temp. Uniformity
+/-2c
Interior Chamber Material
SUS#304 Stainless Steel Plate
Exterior Chamber Material
Stainless Steel Plate + Powder Coated
Circulation System
Centrifugal Fan Air Circulation System
Shelves
2PCS
Cable Port
100mm
Controller
Programmable Touch Screen
Refrigration System
Compressor+Finned Evaporator+Condensor
Insulation Material
PU
Cooling Way
Water Cooling
Transport Package
Strong Wood Carton
Specification
225L
Trademark
Yuanyao
Origin
China
HS Code
8419899090
Production Capacity
2 Sets/Month
Product Description
Linear/nonlinear rapid rate temperature chamber rapid temperature cycleApplication:
It is suitable for testing various performance indicators of aerospace products, information electronic instruments, materials, electrical engineering, electronic products, and various electronic components under the condition of rapid temperature changes.
Test standard: GB/T2423.1-2001, GB/T2423.2-2001, GB/T2423.4-2001, etc.
Features:
1. Touch screen controller, support multiple languages
2. Temperature change rate is optional
3. Can support computer operation and real-time monitoring
4. Heating, cooling, humidification, dehumidification independent, unique BTHC balance temperature and humidity regulation method
Specification:
| model | YICT-225 | YICT-306 | YICT-408 | YICT-800 | YICT-1000 |
| Inner chamber size WxHxD(cm) | 60*75*50 | 60*85*60 | 80*85*60 | 100*100*80 | 100*100*100 |
| External chamber size WxHxD(cm) | depending on inner box size | ||||
| Temperature range | -70ºC~150ºC(KS);-40ºC~150ºC(KL);-20ºC~150ºC(KR) | ||||
| Rapid rate temperature range | -55ºC~+85ºC;-40ºC~+80ºC;-20ºC~+80ºC;0ºC~+80ºC;-60ºC~+80ºC | ||||
| temperature ramp rate | 3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(linear or non-linear)customization is available | ||||
| Temperature fluctuation | ±0.5ºC | ||||
| Temperature uniformity | ±1.5ºC(empty loading after stablize for 30 mins) | ||||
| Resolution | 0.01ºC | ||||
| Internal chamber material | SUS#304 stainless steel | ||||
| Exterior chamber material | cool rolled plate+powder coating | ||||
| Insulation material | PU+fiberglass wool | ||||
| circulatory system | centrifugal fan air circulation system | ||||
| Heating system | SUS#stainless steel high-speed heater | ||||
| Control System | touch screen controller | ||||
| Cooling System | Compressor + finned evaporator + air/(water cooling system | ||||
| Other omponents | Vacuum glass observation window | ||||
| test hole(50mm) | |||||
| control status indicator | |||||
| view light | |||||
| shelf(2 feeely adjustable) | |||||
| safety protection | overheating circuit breaker | ||||
| Compressor overload protection | |||||
| Control system overload protection | |||||
| overload indicator light | |||||
| Phase sequence protection | |||||
| High voltage and low voltage protection | |||||
| Over temperature protection | |||||
| Fan overcurrent protection | |||||
| Power supply | AC3Ψ380V 60/50Hz | ||||
| Customized service | Non-standard or special requirements are all welcome | ||||
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester,
Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester, ect.
Other styles with different configurations are also avaiable upon request, welcome to enquire and contact us anytime!
