Dapeng Digital High Speed Ultra Fine and High Density Fibre Weaving Water Jet Loom Textile Machines From Qingdao China

Product Description

Model NO.	DJW-408 Ultra Fine and High Density Fibre Weaving		Condition	New
After-sales Service	Spare Parts Supply and Technical Support		Shedding Type	Plain, Cam, Dobby
Reed Width	1700mm-3600mm		Bearing	NACHI,NSK
Weft Insertion Rate	2280m/Min		Customized	Customized
Trademark	DAPENG		Origin	China
HS Code	8446304000		Production Capacity	12000Sets/year

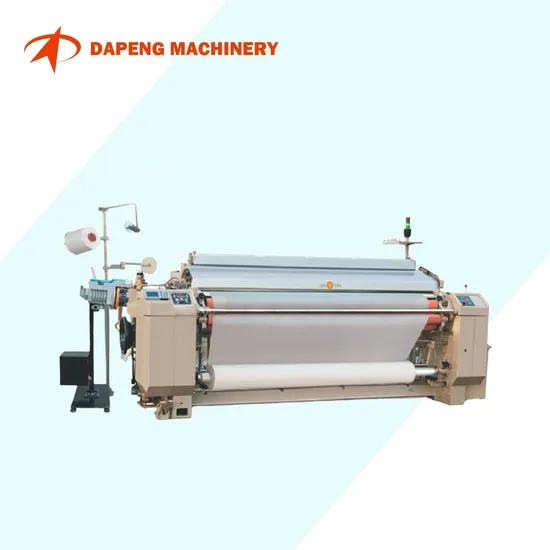

DJW-408 Ultra Fine and High Density Fibre Weaving
Feature
DJW-408 is a new model researched and developed for the purpose of high speed and heavy weight, the whole machine structure beam support area is enlarged to adapt to the seismic performance of high-speed operation; the weft is struck by solid weft beating shaft structure to ensure the stability of high speed and heavy weight weft beating. From the transmission, feeding, opening, lifting, winding mechanism and other aspects of the design are optimised to meet the high grammage, high weft density fabrics of high quality and stable weaving, greatly improving the production of fabric varieties to adapt to the range. Users can also choose the company's successful research of electronic warp feeding, electronic winding system, slow inching, weft density change and speed change device to meet the production needs of higher quality and value-added fabrics. This model can be equipped with flat opening and dobby opening configuration: single pump single spray, single pump triple spray, double pump double spray, double pump triple spray, double pump quadruple spray electronic free weft selection system, so as to meet the weaving of various types of fabrics.

Reed Space	1700mm-3600mm	Customized	Customized
Weft Insertion Rate	2280m/Min	Speed	600rpm-1000rpm
The Number of Heald Frame	Flat opening up to 8 pieces, cam opening up to 10 pieces, dobby up to 16 pieces	Weft Density	5-60 Thread/M
Beating up Method	Four-Linkage Beating up Shaft	Power	1.5kw-4.5kw
Feeler	Photoelectric, Optical	The Effective Width	0-500mm(Standard) 0-700mm(Optional)
Creel Stand	Floor Mounted, Horizontal Stand.	Drive	Push Button Switches for Start, Stop
Suction	Mechanical, Electronic	Temple	Top Mounted
Let off	electronic let off	Weft selection	Two color, four color, six color and continuous expansion function
beating up	"U" shaped beating up shaft	take up	electronic take up
Yard end treatment	Discarded take-up 2pcs drum-type	Selvage	Planetary gear type Selvage device
lubrication	Main transmission part oil bath type, manual centralized oil supply	Weft cutting	Mechanical weft cutting device
Weaving range	spun:Ne100~Ne2.5	automation	inverter to adjust speed.

Water jet loom is an efficient weaving equipment, mainly evaluated in the textile industry, with a wide range of application fields and specific scope of application. The following are the application directions of water jet looms:
Textile industry: Produces various fabrics, such as cotton fabrics, silk fabrics, linen fabrics, etc. It is suitable for the production of key filament chemical fiber fabrics with smooth surface. It is favored for its fast weaving speed and high unit output.
Garment Industry: Used to make shirts, trousers, trousers and other clothing products.
Home industry: Used to make bedding, curtains and other household items.
Orientation
Qingdao Dapeng Machinery Co., Ltd. has advanced processing equipment and excellent technical personnel.
Responsibility
The company in line with the "meet the user low-cost weaving high quality fabrics needs" as the goal, adhering to the "continuous technological innovation, quality and steadily improve the service excellence" business philosophy, for the customer to create exquisite products, dedication and perfect service.

raw materials
The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

Packing
Package Size
569.00c* 213.00cm * 218.00cm
Package Gross Weight
10000.000kg

Shipping
Delivery Port: Qingdao port

1.Premium Certified Supplier
Raw material quality control
Certificated supply of important components
2.Production management system
Processing workshop-Superfinishing the key parts.
Electrophoretic coating workshop-Anti-corrosion treatment of the machine
Assembly workshop - Shuttle-less loom pulsating production line
3.Package system
Dapeng assembled the shedding and body before delivery, and then the loom can be adjusted and used directly after arriving at the customer site.
Separate Package. The shedding is separated from the body before shipment, and assembled after arriving at the customer's site.
4.After-sales service system
Dapeng has a perfect after-sales service system. We has established a professional technical service team to provide comprehensive after-sales service and technical solutions for customers. Dapeng will make a return visit to every customer to guide customers how to use and maintain the machine. For customers who have problems during use, we will conduct one-on-one phone calls or video guidance at first.
5.Quality control management system
Dapeng implements strict traceable quality control over the entire production process from raw material selection, parts processing, spraying process to final assembly. Conduct pre-job operation training and post-job operation control for workshop workers to ensure that the operation conforms to the production process. In addition, Dapeng adopts advanced calibration and testing equipment to ensure that the pass rate of each process is above 98%. Dapeng provides customers with a one-year warranty. If there is any quality problem with the loom during the warranty period, Dapeng will replace the parts for free.
6. Storage management system
Automatic stereoscopic warehouse-Warehousing of materials. Finished Products Warehouse-Loom storage.
Dapeng has a perfect after-sales service system. We has established a professional technical service team to provide comprehensive after-sales service and technical solutions for customers. Dapeng will make a return visit to every customer to guide customers how to use and maintain the machine. For customers who have problems during use, we will conduct.
Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
Q: One-stop Service:
A: We have R&D department including more than 20 engineers which are improving and enlarging our supply range.
