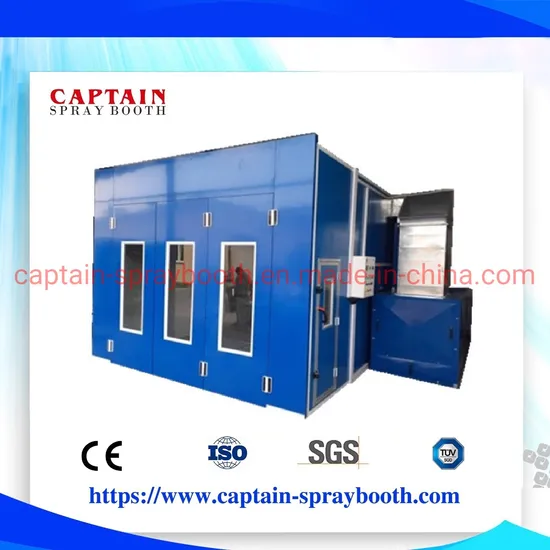

Car Spray Booth Electrical Painting Booth with Electric Heating (Infrared lamp)
| US$5,000.00-9,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
E7006GS
Type
Spray Booth
Certification
CE
Substrate
Sandwich Panel
Brand
Captain
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Electric
Paint Mist Treatment
Dry-type
Condition
New
Inside Dimension
6900*3900*2700mm(L*W*H)
Outside Dimension
7000*5350*3400mm(L*W*H)
Main Door
3-Folds: 3000*2600mm(W*H)
Personal Door
1-Fold:750*1800mm(W*H)
Wallboard
50mm Double Skinned EPS,0.4mm Steel
Basement
Complete Steel Assemble
Lighting System
Inclined Ceiling Lights: 24PCS of 40W Lamps
Intake Fan
2*4kw Centrifugal Fan
Extract Fan
5.5kw Centrifugal Fan
Heating System
Infrared Heat Lamp Heating
Transport Package
Export Container /Pallet /Disassembly with Carton
Specification
CE, SGS, ISO
Trademark
OEM/Captain
Origin
Qingdao, China.
HS Code
8424899990
Production Capacity
196sets/Month
Packaging & Delivery
Package Size
700.00cm * 400.00cm * 340.00cm
Package Gross Weight
3960.000kg
Product Description
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
Real photos :
Can remake the design according to your request
Detailed Specifications
| Outside Size(mm) | 7000x5350x3300 | Inside Size(mm) | 6900x3900x2700 | Front Door(mm) | 3000x2600(WxH) | Total Power | 45kw |
| Basement | δ=1.0mm galvanized steel for bottom coaming, the floor beam is made of galvanized square tube whose specification is 40mmx80mmx1.8mm; 5 rows of grilles, made by 30mmx4mm flat steel, then paint. δ=2.75mm diamond steel plate to make 2 embossed steel ramp, 1 piece stairs. The whole structure is strong, durable and beautiful. | ||||||
| Cabin System | 50mm EPS panel, double 0.4mm steel with tongue and groove structure. The main door is without aluminum side cover, produced by one-time suppress. The watching window is with 5mm white glass. Aluminum alloy hinge and extraposition bolt. One fold person door, size is 1800mmx750mm, with mechanical pressure lock and 5mm glass window. | ||||||
| Ventilation System | 2 sets 4kw YDW4.5L centrifugal fans for supplying, air capacity is 25000m3/h; 1x5.5kw YDW5.6S centrifugal fan for exhausting, air capacity is 15000m3/h. The frame is soldered by 50mmx50mm square tube and with powder coating. The surface sealing plate is made of δ=0.8mm galvanized steel and with reinforcing ribs. | ||||||
| Ceiling | Air plenum chamber made by light-weight steel structure, frame is soldered by 40mmx60mm square tube; filter frame groove is bending with δ=1.0mm galvanized steel with powder coating; ceiling filter bracket is made of machining concave steel pipe and ø6 round pipe with powder coating. | ||||||
| Lighting System | 4 tubes x 8 teams x 36w famous brand lights with electric ballast, top lighting way installed with 45 degree angle, to ensure no double image and blind area, illuminance>=1000Lux. Optional :8units *2pcs *pcs*30w side lights in vertically embedded into the wall. The protection glass is 5mm white glass. And the box is bending by δ=0.8mm galvanized steel with powder coating. | ||||||
| Heating System | 8units *3kw infrared lamps on both sides, total is 24kw; | ||||||
| Purification System | Prefilter is using non-woven filter cotton; ceiling filter is using CC-600G high effeicient filter, thickness 25mm, flame retardant glass is F5. The floor filter is using filter felt for paint mist.And M type active carbon for the waste gas. | ||||||
| Electric Controlling System | High quality electronic elements, multi-protection for the main circuit; temperature and time setting switch, spray & baking switch, light switch, emergency stop, breakdown alarm, etc. | ||||||
If can't meet your need , please contact with me and tell me your requirements , then we can customize it as your requirements .
Design drawing for infrared lamps and natural gas burner model :
Inside view:
Materials and details:
50mm thickness EPS wall panel
Heat exchanger :
Ceiling system :
Intake and exhaust system:
Loading :
Production
| Delivery time : after received you payment ,we will produce , for this standard model , the delivery time is 2-3 weeks . |
| Payment term: 50% TT IN ADVANCE , 50 % before delivery |
| After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included) |
| when your workers unloading the goods, If they find something damaged during transit by sea, please take the pictures of the damage in the container and we will reissue you or give you some compensation. (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record) |
