Automatic High Speed Jumbo Tissue Toilet Roll Cutting Machine Kraft Paper Rewinder Slitter Rewinding Slitting Machine

Product Description

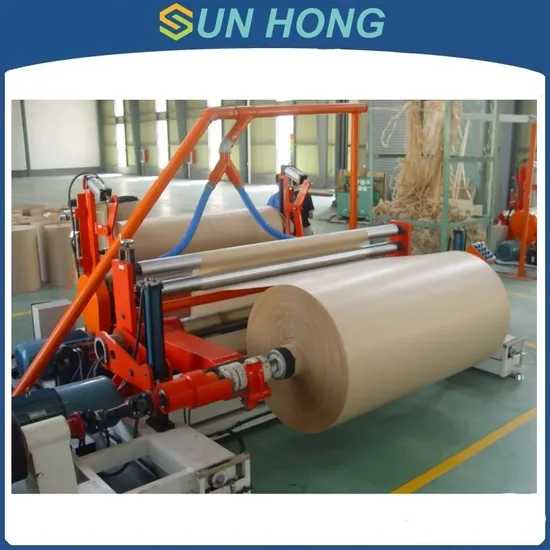

Kraft Corrugated Paper Rewinding Slitting Machine
High speed numerical control single axis slitting machine is composed of hydraulic shaftless support and slitting machine
The high-speed CNC slitting machine is used to cut the wide coiled materials such as kraft paper, bobbin paper and printing paper into various narrow coiled materials suitable for production according to different needs in the production process. The slitting process includes two processes: unwinding and rewinding. The tension control of unwinding material and winding material is the key link of slitting machine. It is equipped with automatic edge alignment, automatic edge correction and automatic tool adjustment positioner control, which achieves the ideal effect, improves the working performance of the machine, makes the machine more stable in high-speed operation, flat winding, simple and convenient operation, safe and reliable, and strong durability. Its features are: Hydraulic shaftless paper frame, convenient and fast paper loading.
Technical Parameter

Base paper width	1600(mm)
Base paper diameter	Φ1200(mm)
Reel diameter	Φ1200(mm)
Slitting width	>30(mm)
Base paper weight	80-600g
Motor power	5.5Kw-6
Paper loading method	Hydraulic shaftless support
Braking mode	Dual pneumatic brake
Paper feeding mode	Pneumatic
Slitting speed	300m/min
Operator	1

Hydraulic shaftless frame High speed Slitter
Sun Hong Full Automatic Toielt/Tissue Paper Rewinder Slitting Machine
Rewinding the raw paper into long strips: the toilet paper rewinder rewinds the raw paper rolls produced by the paper machine to make them into long strips of toilet paper.
Slitting and embossing: The toilet paper rewinder can slit the raw paper to the desired width. In addition, embossing can be performed to give the paper surface a better touch and appearance.
Improve production efficiency and product quality: through the process of rewinding, slitting and embossing, toilet paper rewinder can improve production efficiency, while making the quality of the final product more stable and beautiful.
Applied Tissue Paper Type
Machine Details
The Process of Tissue Paper Roll Making
Technical Parameter

Model	1575	1880	2400	2600	3150	3500
Raw material width (mm)	1800	2100	2400	2500	3000	3500
Finished roll diameter(mm)	Φ60-150mm(tightness adjustable)
Finished roll core diameter(mm)	Φ32-50mm
Raw material diameter(mm)	Φ1100mm(other sizes are available)
Raw material core diameter(mm)	3''(76.2mm)(other sizes are available)
Perforation pitch(to be appointed)	4 perforating blade 90-160 mm;2 perforating blade 180-320mm
Speed	180-200m/min
Parameter setting	LCD screen operation panel
Programmable controller	MITSUBISHI Programmable Controller (PLC)
Unwinding unit	1-3 ply,15-30gsm
Pneumatic system	3HP air compressor,Min pressure 5kg/cm2 Pa(provided by client)
Power	Frequency conversion speed regulator,5.5-15kw
Dimension (mm)	6200*2600*800-6200*4000*800
Weight	3800-9000kg
Option (need to order)
Embossing unit	Single ply embossing, double ply embossing, steel to steel embossing
Bottom embossing roller	Felt roller, Paper roller , Rubber roller
Unwinding unit	1-3 ply
Unwinding unit driving	Gear box driving
Finished roll rewinding	Coreless rewinding system
Edge embossing unit	Steel to steel
Perforating unit	Pneumatically separating unit
Calendering unit	Steel to steel, steel to rubber
Modem	Need to order

Sun Hong Group
Sun Hong Group is a company specializing in serving the pulp and paper industry by manufacturing qualityequipment and provide technical support to help customers solve various problems in production. Our aimis to help our customer improve production efficiency and reduce energy consumption.
Own factory equipped with high-precision CNC machine tools and machining centers, advanced equipmentsand instruments, which can fully guarantee the stability and reliability of the products. There we can offer youthe best quality at the most competitive prices.
In addition to providing equipment, it is more important to provide technical services. We has a professionaltechnician team that is devoted to pulp and paper industry. We are able to make the best proposal after com.pletely analyzing and figuring our problems of the paper production line though paper-making progress,equipment,electric automatization and so forth.
Welcome to contact us. Sun Hong Group look forward to cooperating with you.
