DC Power Fire and Security 4 Wired Conventional Smoke Detector Alarm with Output Nc/No
| US$5.90-7.90 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
ZDD-315S
Anti-Theft Alarm System Type
Smoke Alarms
Anti-Theft Alarm System-Wide
Space Security Alarm Detector
Anti-Theft Alarm System Distance
Common Detectors
Types of Smoke Detectors
Photoelectric Smoke Style
Infrared Sensor Probe Type
Inclination Sensor
Infrared Sensor Installation
Ceiling
Combustible Gas Detector Model
NA-300
Alarm Mode
Network Output / LED Indicator
Alarm Output
Relay Output
Sensitivity
Class I
Detecting Area
20 Square Meter
Installation Height
6m-12m
Operating Voltage
DC9V~35V
Standby Current
≤2mA
Alarm Current
≤10mA
Meeting
GB4715, UL268, En54-7 Standards
PCB
SMT Design
Dimension Size
Φ100mm * 48mm
Packing Box
11*11*6cm
Weight
0.2kg/PC
Operating Temperature
-10ºC to 50ºC
Operating Humidity
≤95% Rh
Transport Package
Color Box
Specification
CE, RoHS
Trademark
ZUDSEC
Origin
Shenzhen, China
HS Code
8531101000
Production Capacity
5000000PCS/Year
Product Description

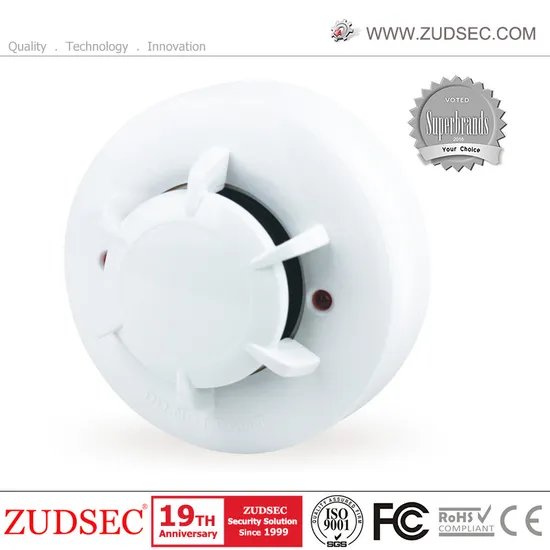

Product Description DC Power Fire and Security 4 Wired Conventional Smoke Detector Alarm with Output Nc/NoSmoke Detector - 4 Wire: Is a high-sensitivity photoelectric smoke detector for fast detection of slow, smoldering Smoke&Fire when Danger. It is designed for a wide range of commercial applications where reliable smoke detection is required.
Features - Infrared photoelectric sensor; Strong Adaptability for Circumstance.- Alarm output N.C./N.O. optional; Network output / LED indicator
- SMT Design, High Stability
- 9-35VDC Wide Voltage Operating Range
- Low Standby Current
- Stainless Steel Shield
- Meeting GB4715,UL268,EN54-7 Standards.
Product Parameters Speicification:
Operating Voltage:DC9V~35V ; Standby Current : ≤2mA; Alarm Current:≤10mA Alarm mode: network output / LED indicator Alarm output: relay output Sensitivity: class I Operating Temperature: -10ºC ~ +50ºC Operating Humidity :≤95%RH Detecting Area: 80 square meter(with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m) Dimension Size: Φ10.4 cm * 4.9cm; Packing box: 11.5*11*6cm; Weight: 0.22kg/pc
