Factory Price SMT Pick and Place Machine SMT Automatic PCB Conveyor PCB Magazine Loader

Product Description

Product introducion

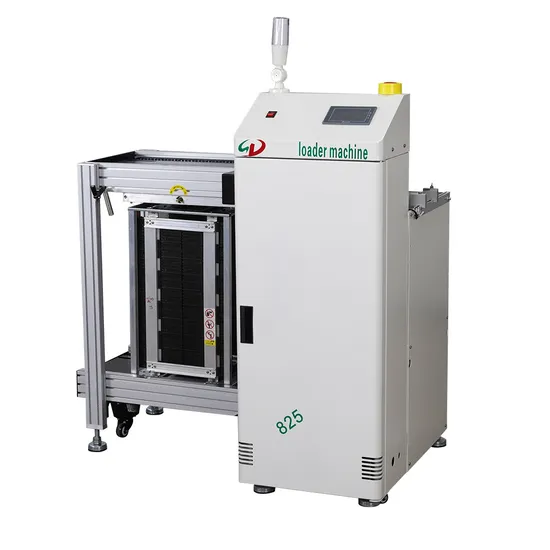

SD-825 SMT Board auto PCB Loader
Product Introducion:
(1) Application:

The SD-825 SMT board handling PCB loader is mainly used in the front part of the SMT production line, which can transport the PCB board to the following automatic solder paste printing machine, placement machine and some other equipment sets. It has the function of automatic board loading which can save labor cost, improve production efficiency and increase yield of products.
(2) Features:
The SD-825 SMT board handling PCB loader has the following features:
1. Frame structure: the sheet metal structure and aluminum profile frame of the SD-825 SMT board handling PCB loader is painted white.
2. Control system: it adopts PLC control system with automatic fault diagnosis which can be operated through touch screen.
3. Alarming function: it will alarm with flickering LED light when fault occurs.
4. The lifting step distance of rack or feeder can be adjusted according to the thickness of PCB board.
5. It has the function of automatic counting for convenient production statistics.
6. There is board clamping design after the loading of the PCB board, so that the board will not be pushed broken. Thus the production capability can be increased.
Product Parameters:

Power supply	Single phase 220V
Start up power/no-load power	105 W
Applicable frame size	355*320*563mm
PCB Size	350*(50-250)mm
PCB Thickness	0.6-3.0mm
Dimension	1150 * 720*1250 mm
Lifting step distance	10, 20, 30, 40, 50 (mm) can be set freely
Air compression	5-6KG
Fixed edge	Front edge fixed (back edge fixed can be customized)
Transport direction	L→R (R→L can be customized)
Transport height	900 ± 20mm
Optional step distance	1~5 steps (10mm step distance)
Voltage resistance	AC terminal to ground 1500VAC, 1 minute
Application environment	Environment without corrosive gas and dust
Anti-interference	Voltage noise: 1000Vp-p, pulse width 1us, 1 minute
PLC	Siemens (specified control device)
Touch screen	Samkoon 4.3# intelligent touch screen
Machine weight	180KG

Product Description
Maintenance and repair
(1) High temperature
The machine is easy to malfunction in the high temperature environmentthus affects the production. Manufacturers do not know the cause of thecase that is mechanical damage, only normal use, attention tomaintenance and micro-repair, these mechanical failure control.
(2) Voltage problem
After-sales service manufacturers often encounter customer response tomechanical failure, such as mechanical heating can not work, unable torotate control display instability. The causes of the above failures, inaddition to a few poor quality, most of the voltage is not enough, capacityis not enough, line aging and lead to imbalance between circuits. If it isnot repaired in time, the machine will burn out.
(3) Professional maintenance
Equipment professional electrical maintenance personnel, regularmaintenance and repair of machinery. Can also be under the guidancof manufacturers to do a good job in the daily maintenance and regulamaintenance of machinery. FAQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
