Automatic Wire Nail Making Machine Z94-1c/2c/3c/4c/5c/6c/7c Price

Product Description

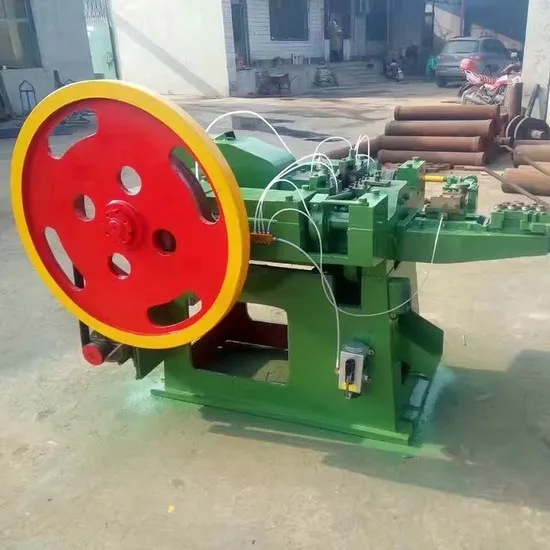

Automatic 1-6 Inch Iron Wire Nail Making Machine Z94 Series
Process Flow
Product Description
Features of automatic nail manufacturing machine:
1. The nail making machine has the features of high speed, low noise, less impact. And can feed the raw material automatically, which is easy to operate, strong and durable.
2. One nail making machine can make different size range of nails.
3.The nail making flow: steel wire - wire drawing - nail making - nail polishing -finished nails/ raw material-nail making-nail polishing-finished nails.
4. The user can get high profit in a short time.


Product Parameters

Technical data	Unit	Z94-1C	Z94-2C	Z94-3C	Z94-4C	Z94-5C	Z94-6c
Dia of nail max	mm	2.0	2.8	3.4	4.5	5.5	2.0
Dia of nail min	mm	0.8	1.5	2	2.8	3.7	6.5
Length of nail max	mm	30	50	80	100	180	250
Length of nail min	mm	10	25	50	60	80	80
Designd Capacity	PCS/min	450	340	280	220	180	100
Motor power	KW	1.5	2.2	3	4	5.5	7.5
Weight	Kg	450	750	1050	1900	2200	2800
Overall dimensions	mm	1250*1100*1150	1750*1200*1250	1750*1250*1300	2200*1550*1500	2500*1550*1450	2800*1550*1700

Finished Product

Packaging & Shipping


Related Equipment
Pulley Dry Wire Drawing Machine Straight-Line Wire Drawing Machine Polishing Machine
Certifications
Company Profile
We, Tangshan Shuoen is a professional cold roll forming machine manufacturer, We have been focusing on this field for 10 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.Shuoen has employed a team of engineers for more than 10 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
FAQ

Q1. How long is your warranty period?
Within 12 months from the date of self loading, we guarantee that no malfunctions will occur due to manufacturing defects.
Q2. How can I trust the machine to paste and test before shipment?
We have recorded a test video for your reference. Alternatively we welcome you to visit our factory and personally test the machines.
Q3: If you can customized the roofing sheet forming machine for i need?
Yes, Just share your design to us is ok, we will give you one fully quotations. Q4: What's your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers' workshop if needed.

Q5: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time.
